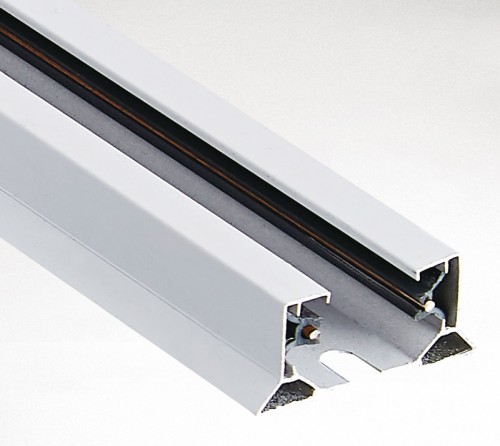

Two-Wire Track Rail

YZ6201 Track Rail

2-wire and 1-circuit lighting track rail system.
Extruded alum-alloy profile.
High performance at thermal conductivity.
Surface finished with powder coating.
White & black color are available.

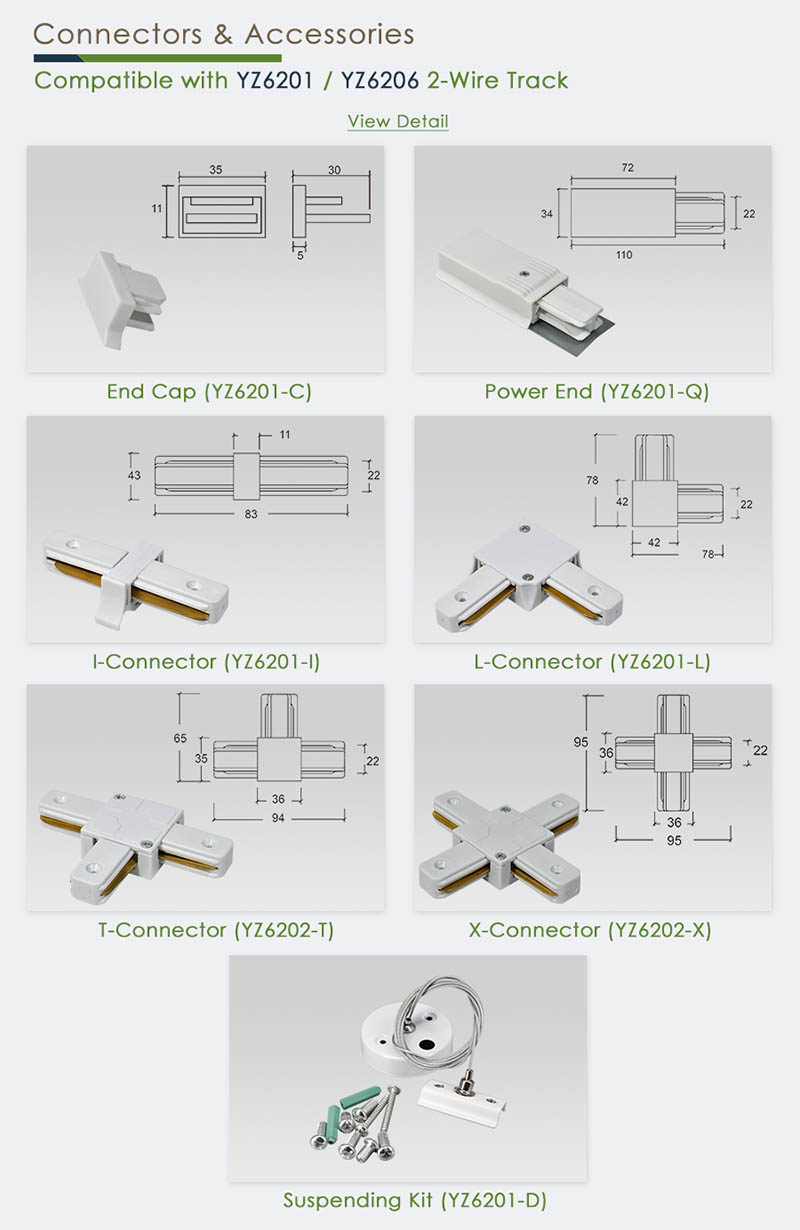

Varied types of connectors are available.
2 pcs of copper strips for electrical conductivity.
The copper strips conduct well at power supply.
Flame-retarded PVC strips ensure electrical safety.
Accessories are available for suspended mounting.

YZ6201 lighting track rail is for 2-wire 1-circuit track lighting systems to fix lighting fixtures and provide power. The track rail body was made of premium extruded alum-alloy profile, comes with 2 pieces of copper conducting strips, which are insulated by flame-retarded PVC material. This track rail is compatible with several types of connectors and accessories for versatile lighting layouts and designs.

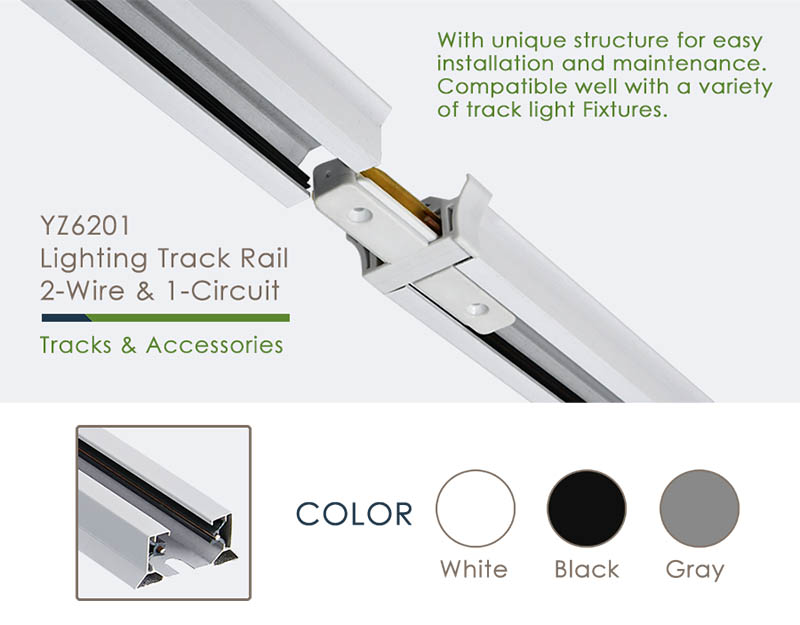

YZ6201 Lighting Track Rail Systems

Stunning designed and well surface finished with powder coating, regular colors are white and black, and other custom colors are available.

Specifications

Item No.	YZ6201
Brand	Sampo
Wire type	Two-Wire
Circuit type	One-Circuit
Material	Extruded alum-ally profiles
Surface Finished	Powder coating
Colors	White, black, customized
Size	40mm x 16mm
Length	1.0 / 1.5 / 2.0 / 3.0M
Certificated	CE, RoHS
Application	Indoor commercial
Packing	Carton

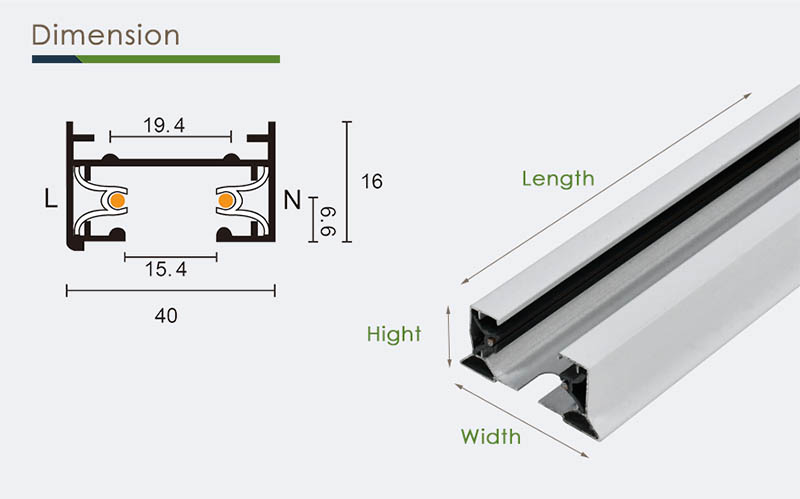

Dimension | YZ6201 Lighting Track Rail Systems

Optional Length: 1.0 / 1.5 / 2.0 / 3.0 Meter

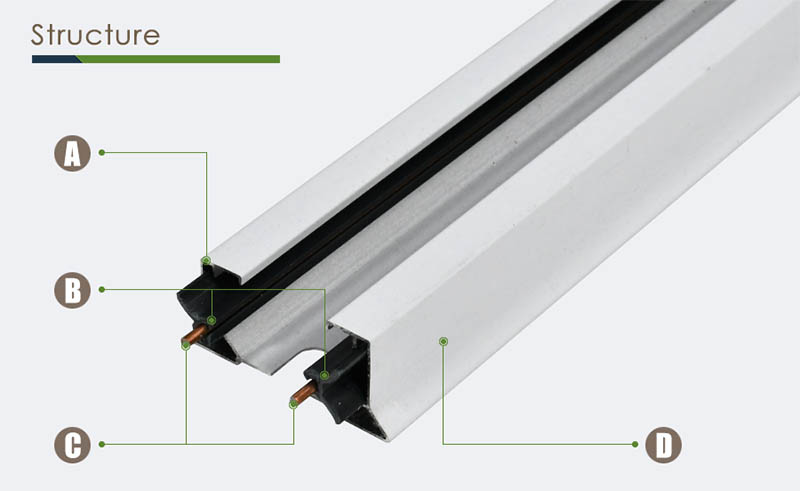

Structure | YZ6201 Lighting Track Rail Systems

A. Housing was made of alum-alloy profile that is durable and good at thermal conductivity.
B. Flame-retarded PVC strips come with good insulation to ensure electrical safety.
C. Premium copper strips have high performance at electrical conductivity.
D. The surface of this track rail was finished with powder coating, available with white, black, and other colors.
