Four-Wire Track Rail
YZ6401 Track Connectors & Accessories
- Compatible with YZ6401 / YZ6404 track rails.
- For 4-wire 3-circuit track lighting system.
- Flame retardancy PC plastic material shell.
- High performance at electric insulation.
- White, black, and other custom colors are available.
- Copper pieces for high performance at conductivity.

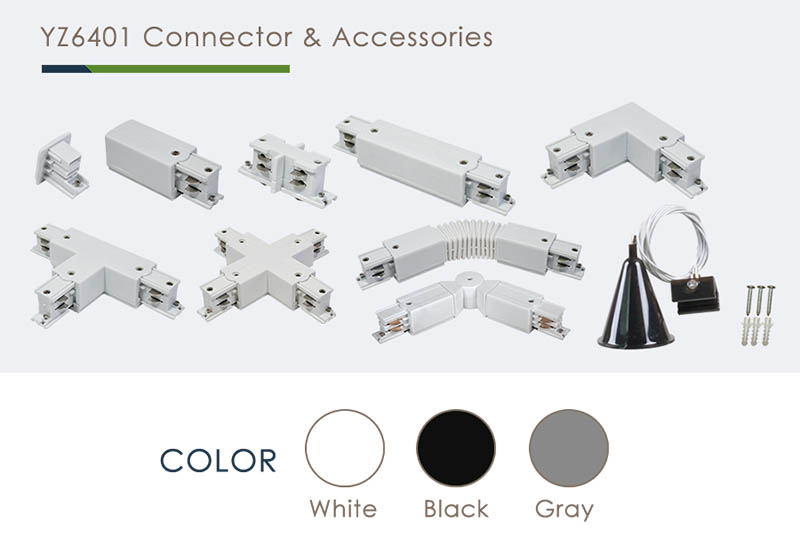

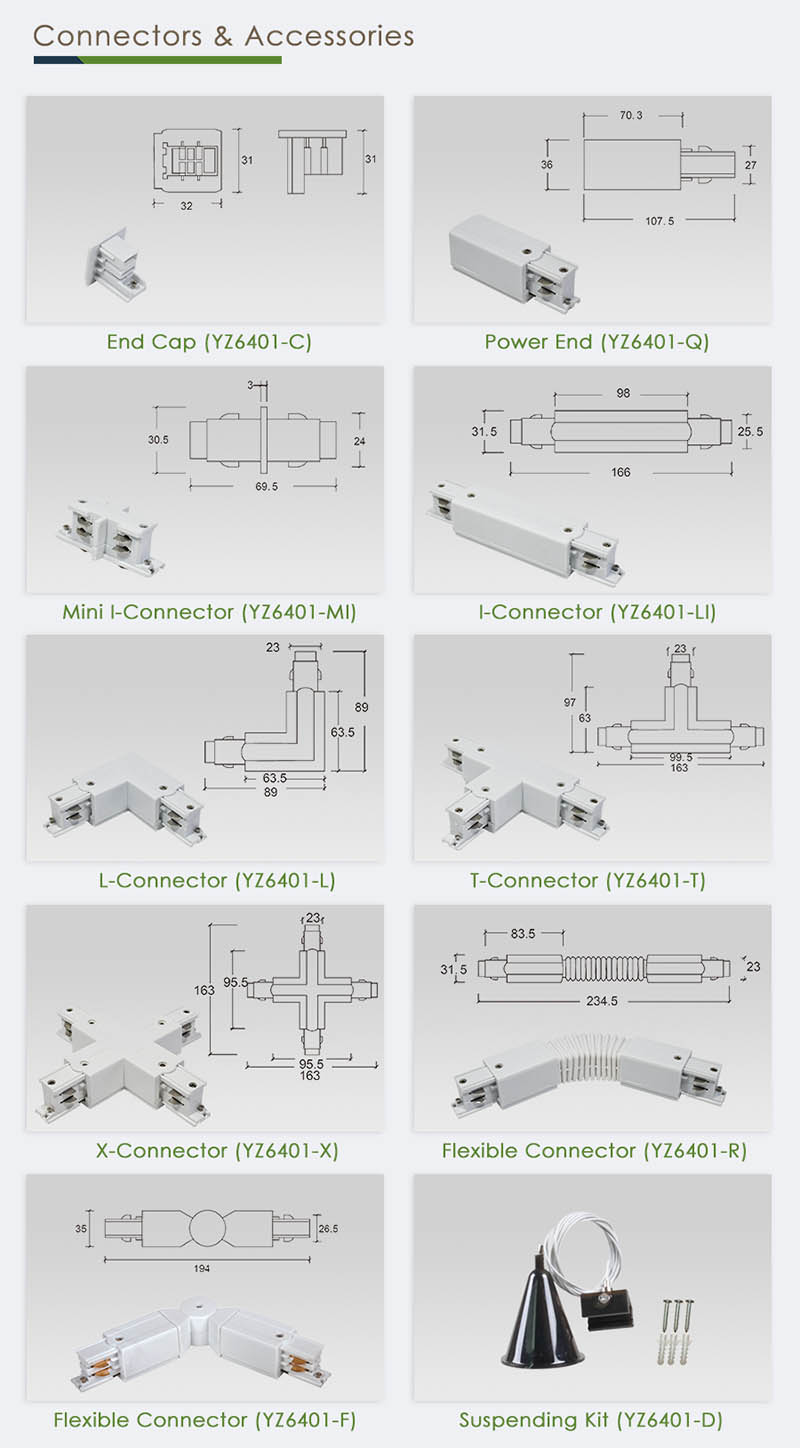

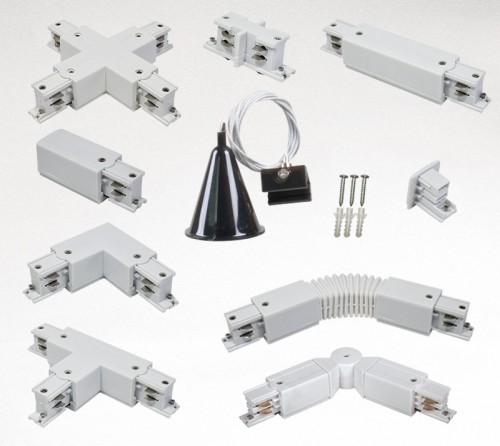

YZ6401 track accessories is for four-wire and three-circuit track lighting systems that include end power feed, I, L, T, X shape and flexible connectors. The connector body was made of PC material with features of flame retardancy & insulation to ensure electrical safety, it comes with brass contact pieces for power conducting between track rails.
 |
 |
Specifications
| Item No. | YZ6401 |
| Brand | Sampo |
| Wire type | Four-Wire |
| Circuit type | Three-Circuit |
| Material | PC Plastic |
| Colors | White, black, customized |
| Certificated | CE, RoHS |
| Application | Indoor commercial |
| Packing | Carton |

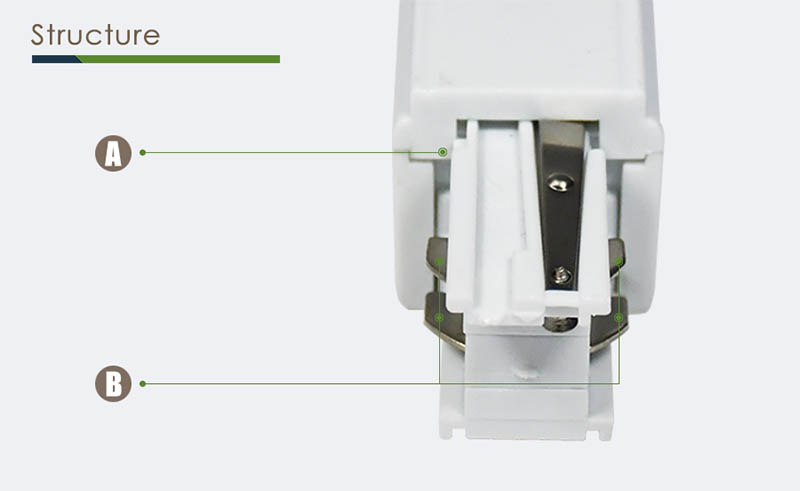

A. Body material is PC has excellent features of flame retardancy & insulation to ensure electrical safety.
B. Brass contact pieces have high performance at conductivity.
