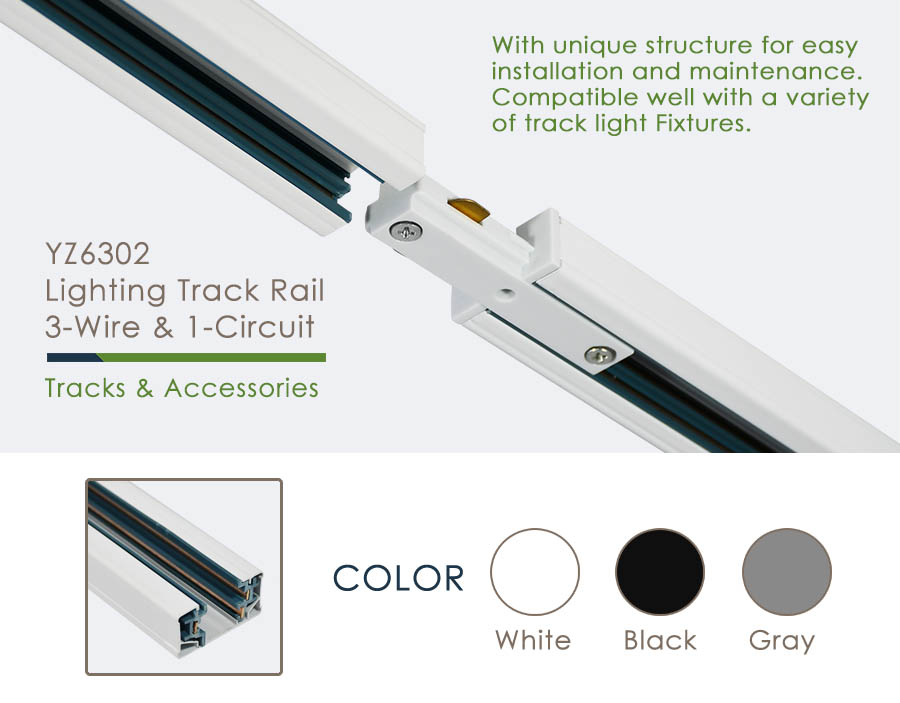

Three-Wire Track Rail

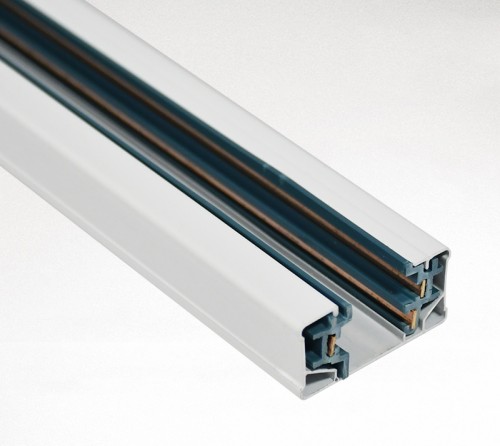

YZ6302 Lighting Track Rail

High performance at thermal conductivity.
3-wire and 1-circuit track system.
Extruded alum-alloy profile.
3 pcs of copper strips for electrical conductivity.
The copper strips conduct well at power supply.
Flame-retarded PVC strips ensure electrical safety.
Surface finished with powder coating.
White & black color are available.

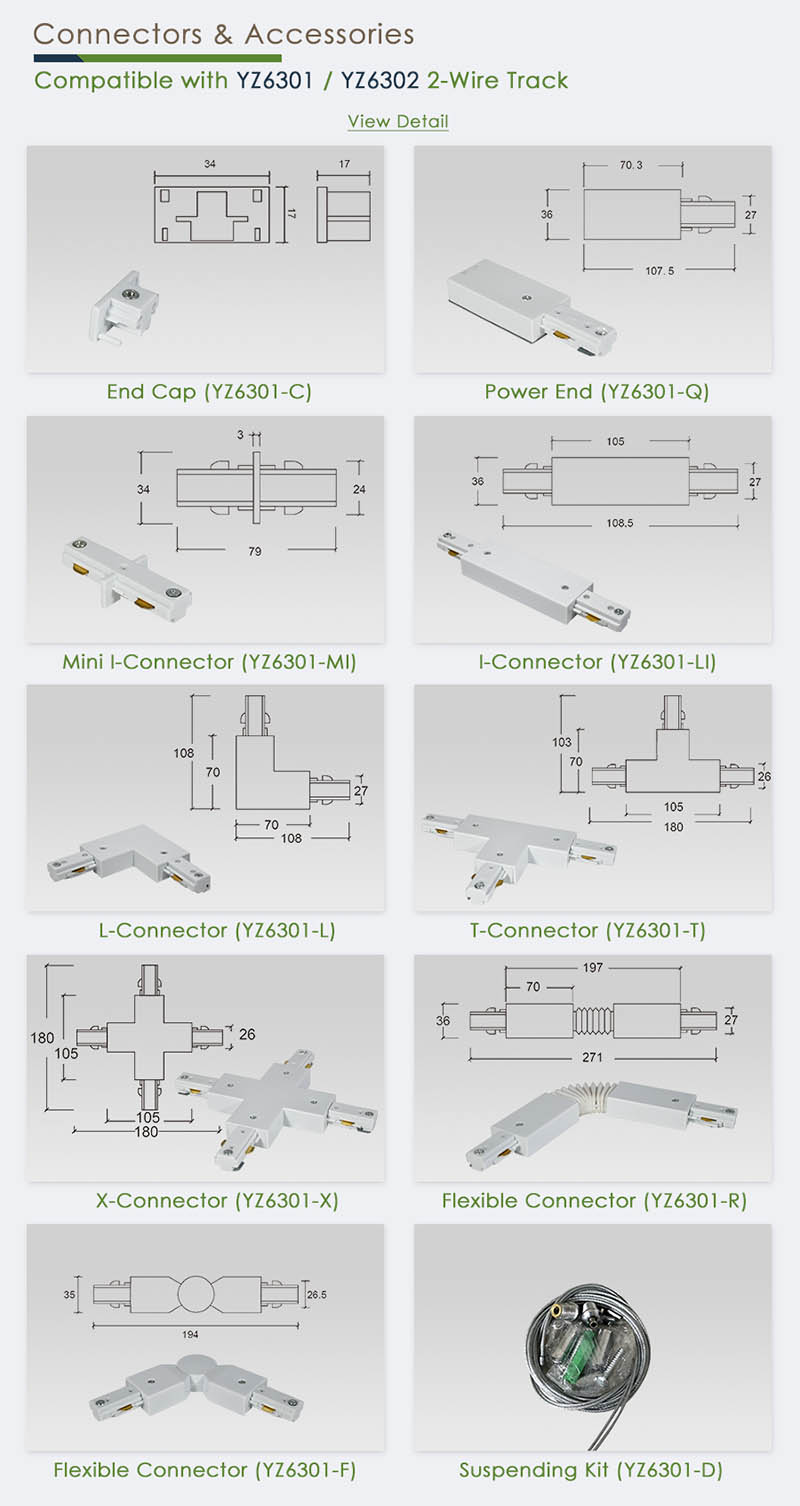

Varied types of connectors are available.
For surface mounted track lighting rail system.
Accessories are available for suspended mounting.

YZ6302 lighting track rail is for 3-wire and 1-circuit track lighting rail system to fix lighting fixtures and supply power. The track rail body was made of premium extruded alum-alloy profile, comes with 3 pieces of copper conducting strips, which are insulated by flame-retarded PVC material. This track rail is compatible with several types of connectors and accessories for versatile lighting layouts and designs.

3 Wire 1 Phase Track Lighting Rail System

Stunning designed and well surface finished with powder coating, regular colors are white and black, and other custom colors are available.

Specifications

Item No.	YZ6302
Brand	Sampo
Wire type	Three-Wire
Circuit type	One-Circuit
Material	Extruded alum-ally profiles
Surface Finished	Powder coating
Colors	White, black, customized
Size	34.3mm x 17.3mm
Length	1.0 / 1.5 / 2.0 / 3.0M
Certificated	CE, RoHS
Application	Indoor commercial
Packing	Carton

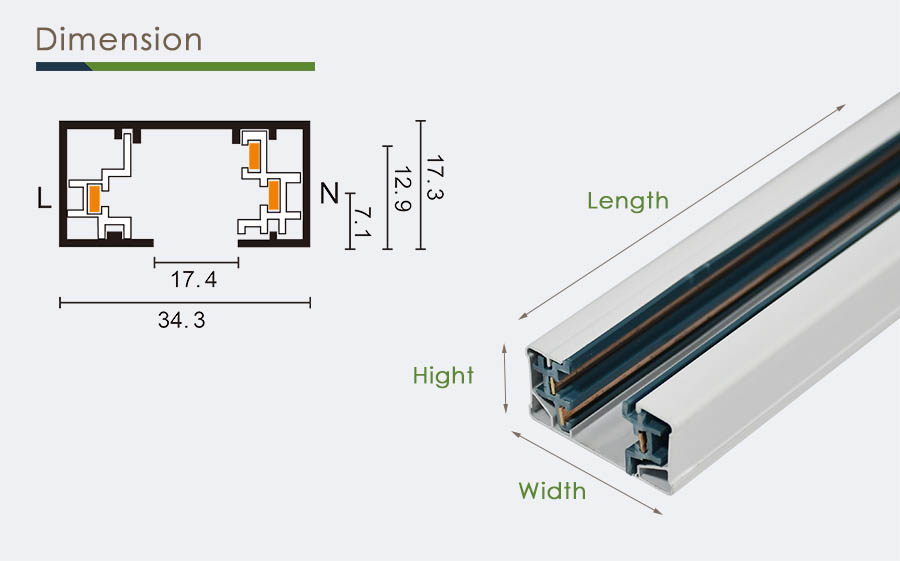

Dimension | 3 Wire 1 Phase Track Lighting Rail System

Optional Length: 1.0 / 1.5 / 2.0 / 3.0 Meter

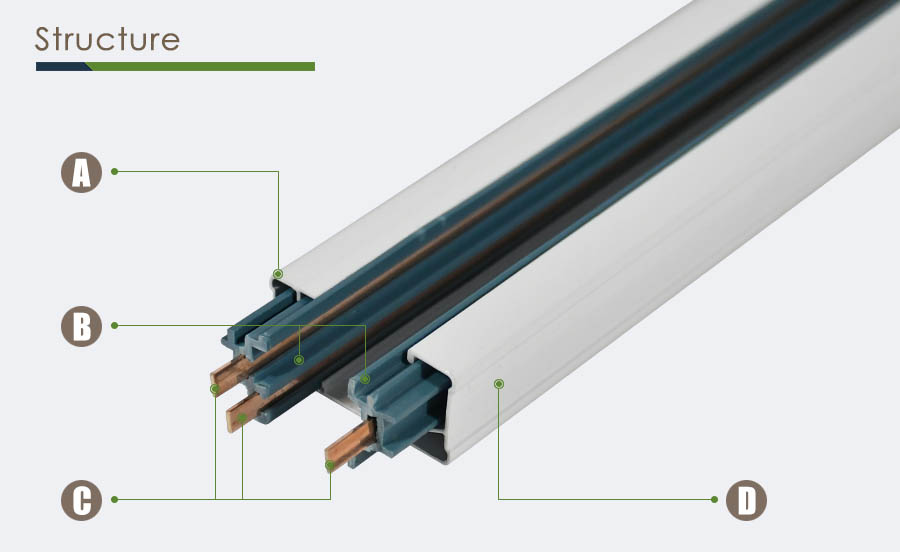

Structure | 3 Wire 1 Phase Track Lighting Rail System

A. Housing was made of alum-alloy profile that is durable and good at thermoconductivity.
B. Flame-retarded PVC strips come with good insulation to ensure electrical safety.
C. Premium copper strips have high performance at electrical conductivity.
D. The surface of this track lighting rail was finished with powder coating, available with white, black, and other colors.
