Integrated LED Downlights

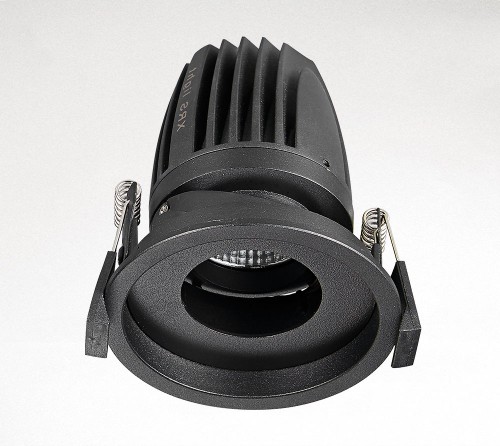

YZ8101 Pinehole Downlight

Regular powers: 7W/12W.
Pinhole LED wall washer downlight.
Brightness and CCT are adjustable.
Compatible with wireless and wifi device for smart control.
Voltage AC85V~248V available on request
Black, white and gray colors are available.
Color temperature 2700K~6000K available on request
The housing is made of premium die-cast aluminum.
Excellent thermal conductivity for long-lasting use.
Powder coating finish offers stunning appearance.
COB chips are optionsl from famous brands.
With spring clips to fix the fixture without tools.

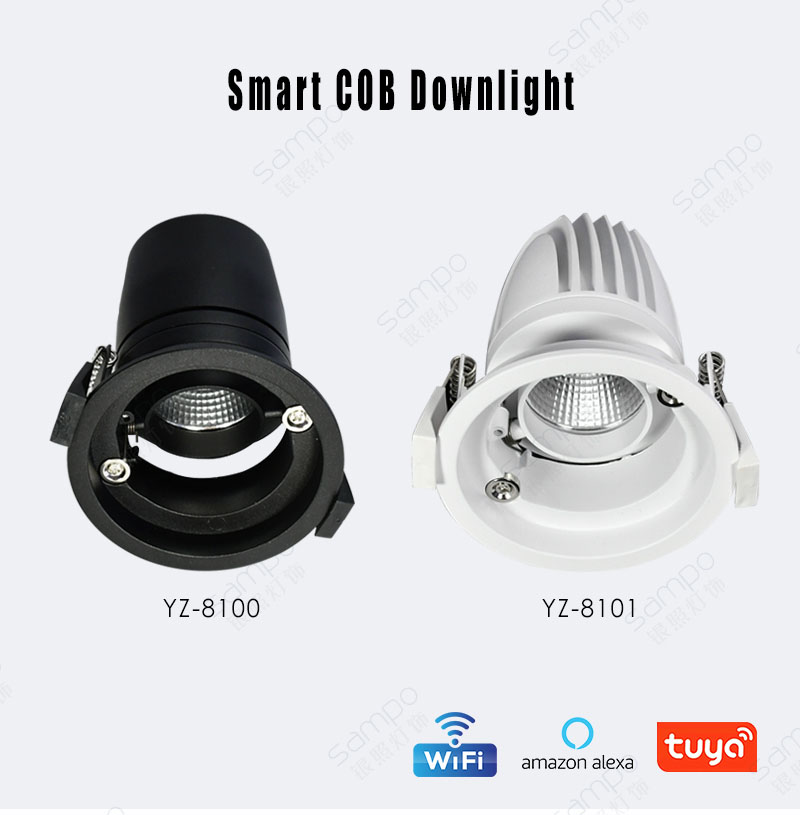

YZ8101 Pinhole LED Wall Washer Downlight

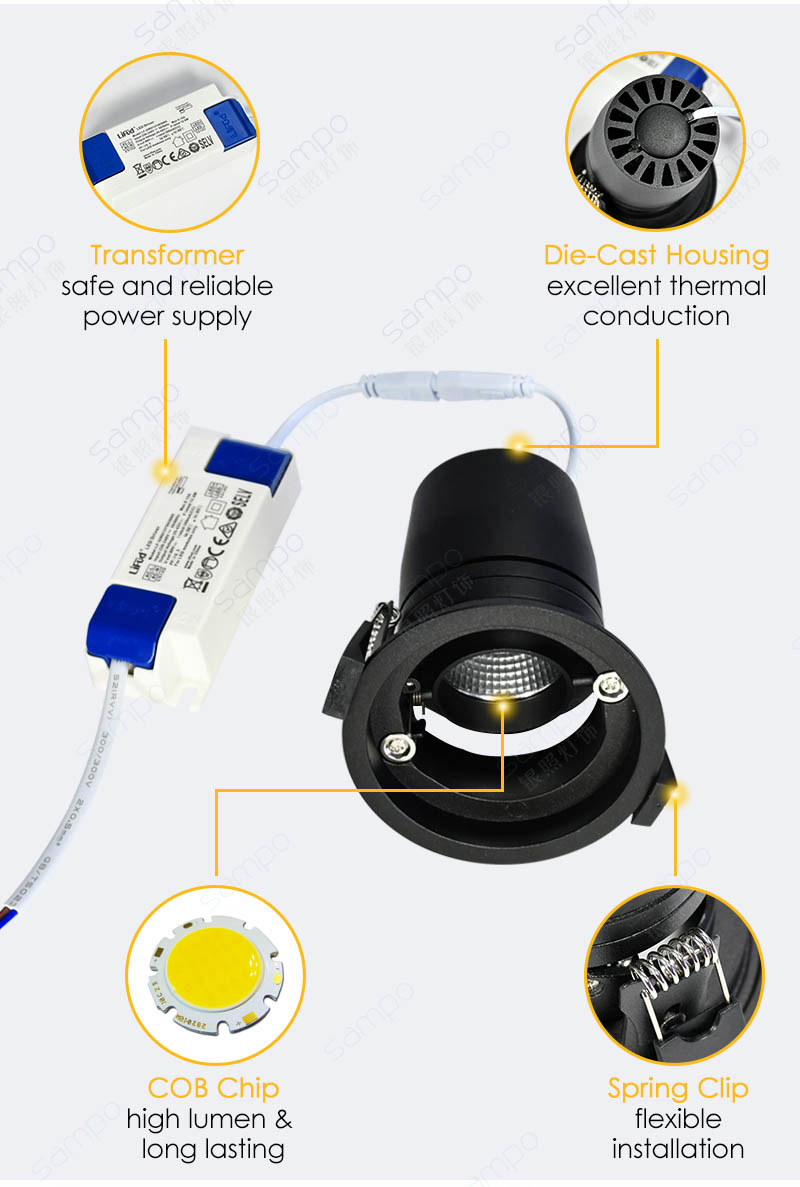

YZ8101 pinhole LED wall washer downlight is an excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smart phone from anywhere at anytime. COB chips are optional from some famous brands. Durable die-casting aluminum alloy housing performs well at thermal conduction. Stoving varnish finish looks stunning and elegant. With safe and reliable transformer to supply power, voltage AC85V~265V is available on requests.

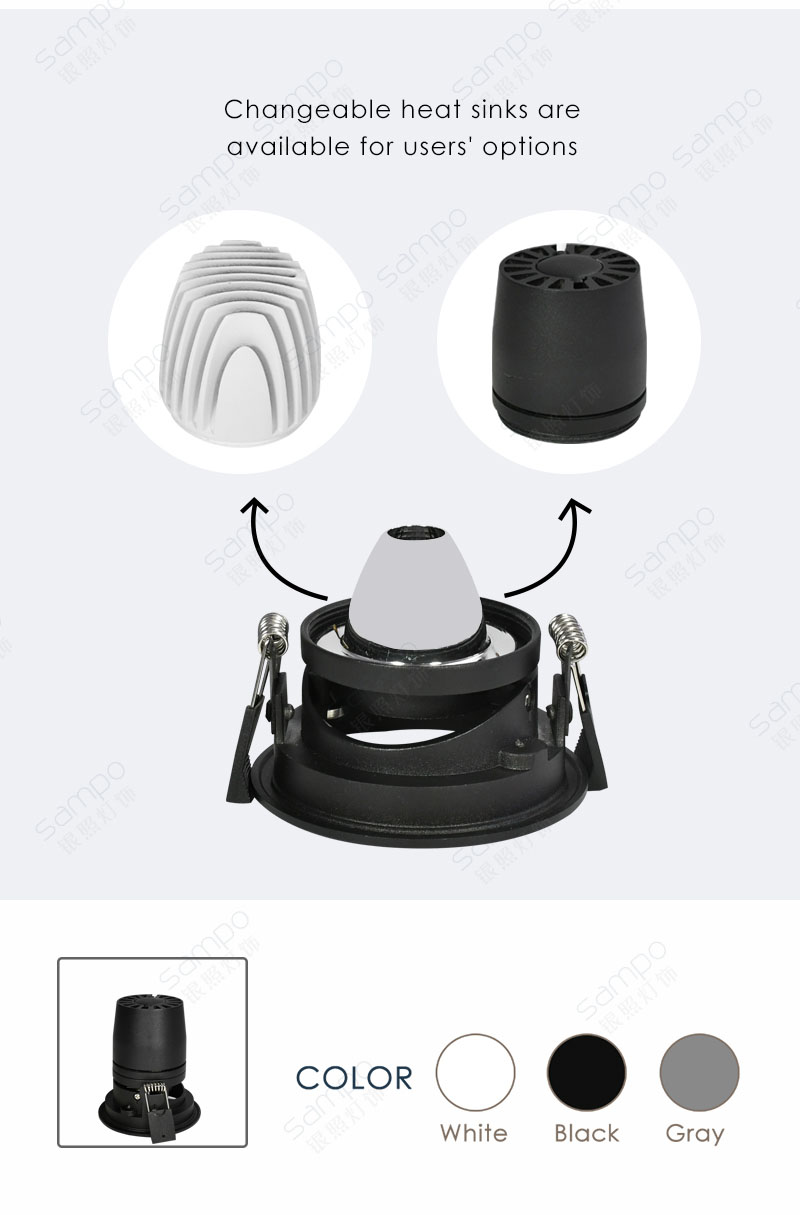

Heat Sink | YZ8101 Pinhole LED Wall Washer Downlight

The surface of the pinhole LED wall washer downlight was finished with stoving varnish, and has white & black as standard colors, comes with stunning design. the heat sink is changeable and has 2 options.

Specifications

Motel No	YZ8101
Power	7W/12W
Voltage	85-265V
Lum. Efficiency	361/506 lm/w
Lum. Flux	100 lm
Working Temp.	-20~50°C
CCT.	2700-6000K
CRI	Ra>90
LED Source	COB
Housing Material	Aluminum
Finishing	Powder Coating
Color	White/Black/Gray
Lifespan	30000 hrs
Warranty	3 Years
Dimmable	Y
CCT Adjustable	Y
Size Of Cut-Off	Φ75mm
Size Of Surface	Φ85mm
Height	92mm

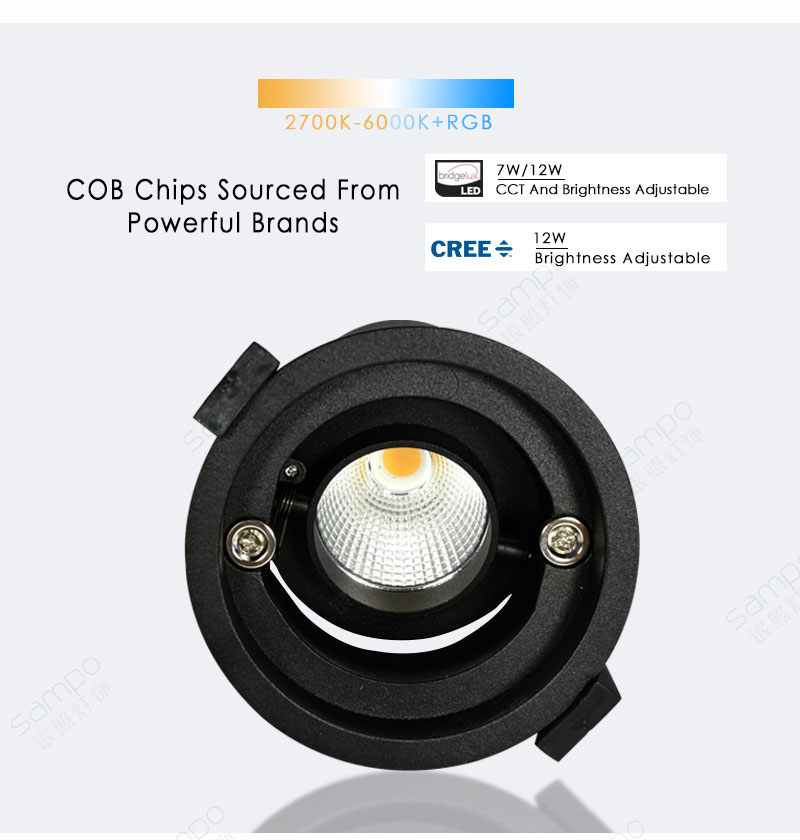

COB Chips | YZ8101 Pinhole LED Wall Washer Downlight

COB chips are optional to be sourced from CREE, Bridgelux and Epistar, Lens applied GR OPTICS technology.

Features | YZ8101 Pinhole LED Wall Washer Downlight

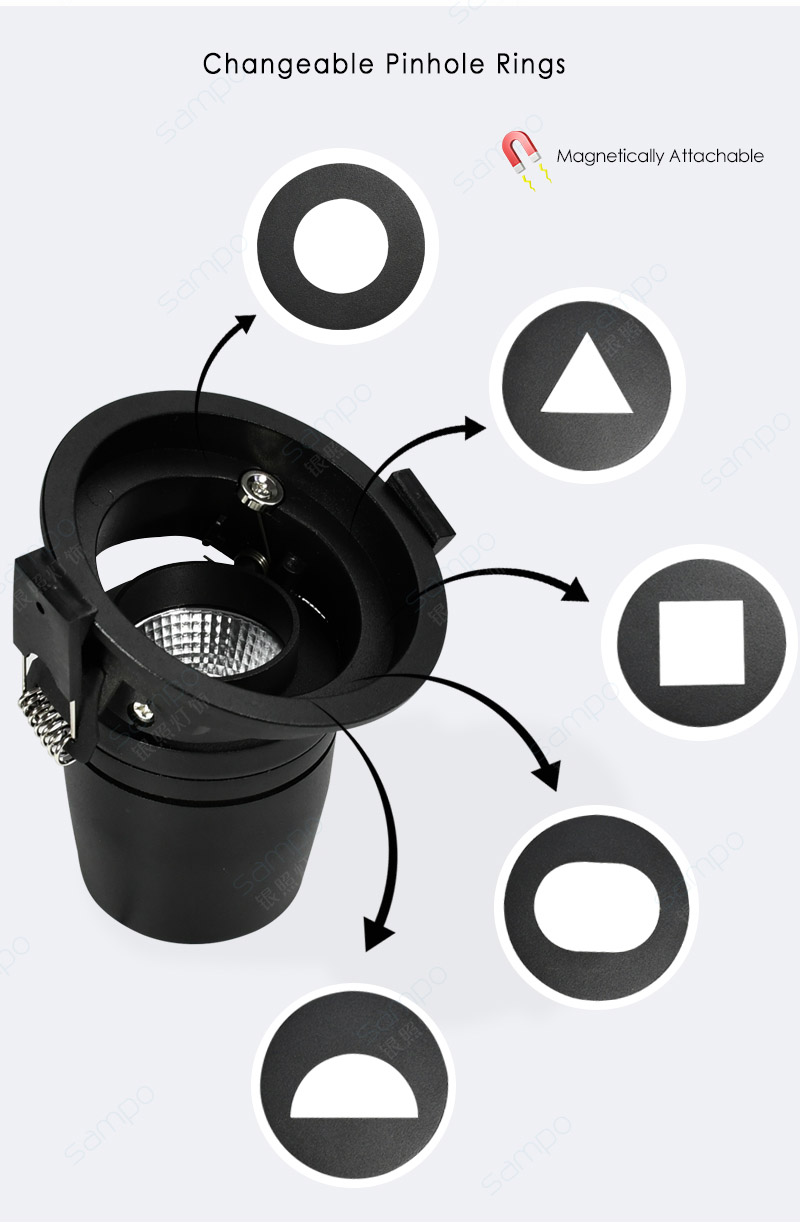

Pinhole Ring | YZ8101 Pinhole LED Wall Washer Downlight

The pinhole rings are changeable for different wall washer lighting styles.

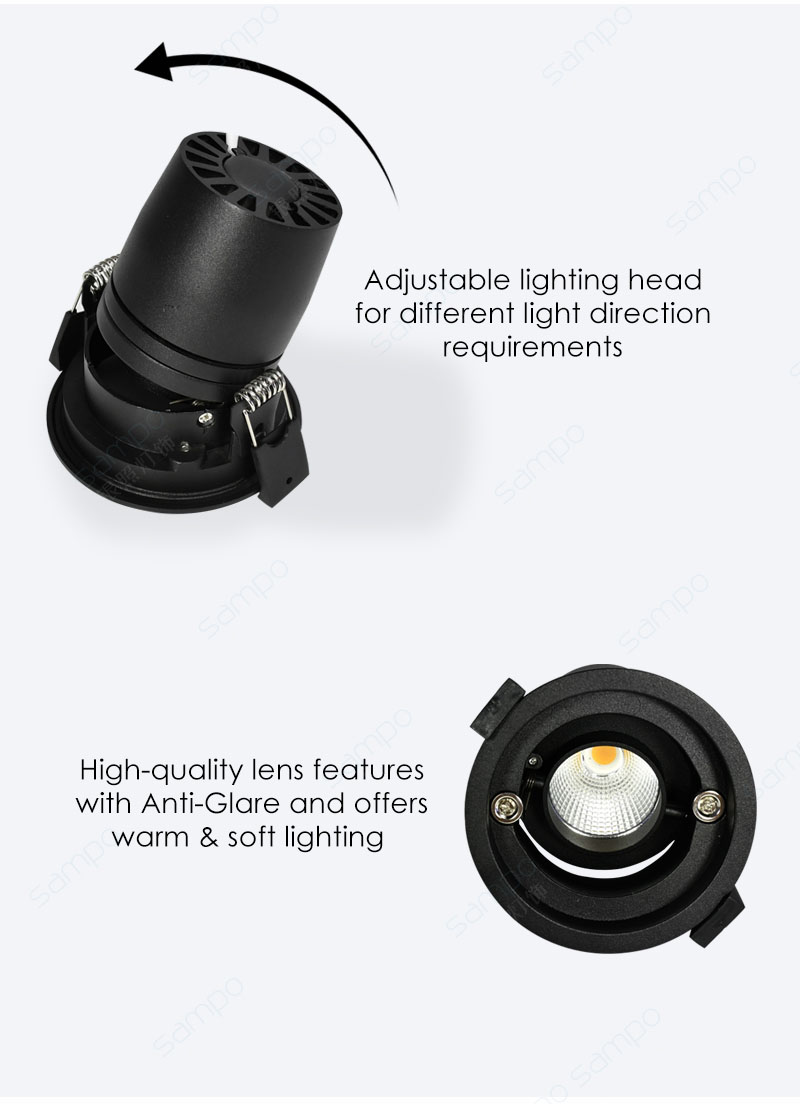

Tilt Light Head | YZ8101 Pinhole LED Wall Washer Downlight

The housing of the pinhole LED wall washer downlight is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

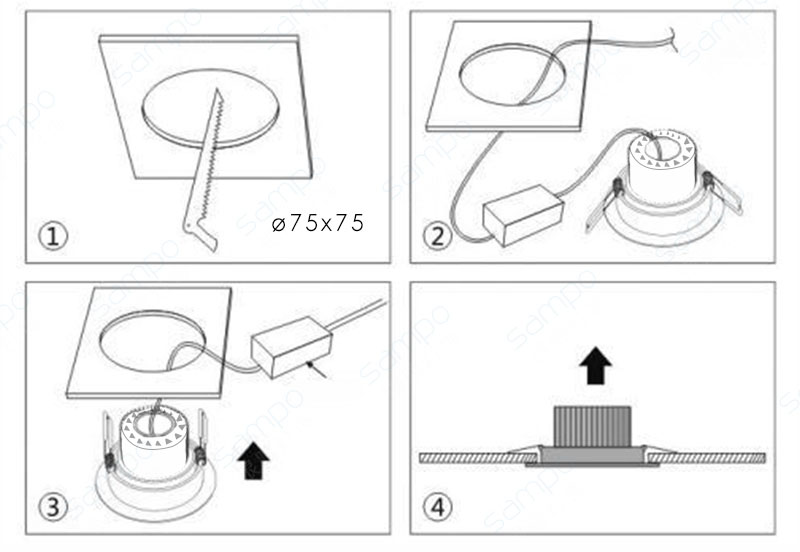

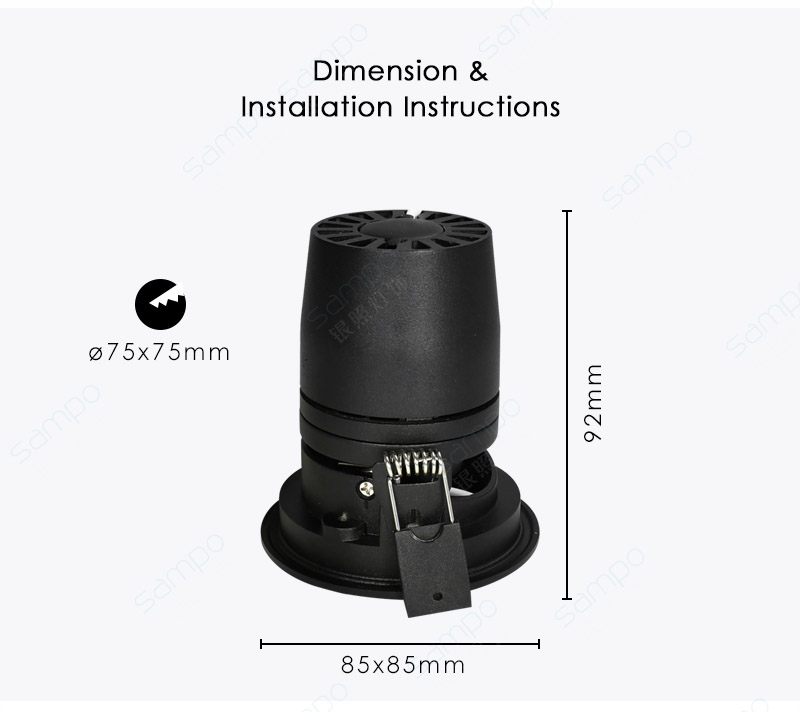

Dimension | YZ8101 Pinhole LED Wall Washer Downlight
