Two-Wire Track Rail

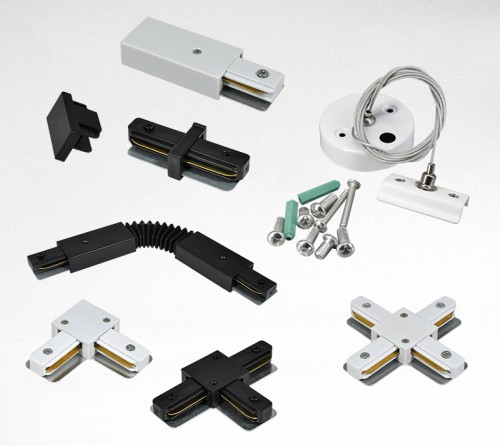

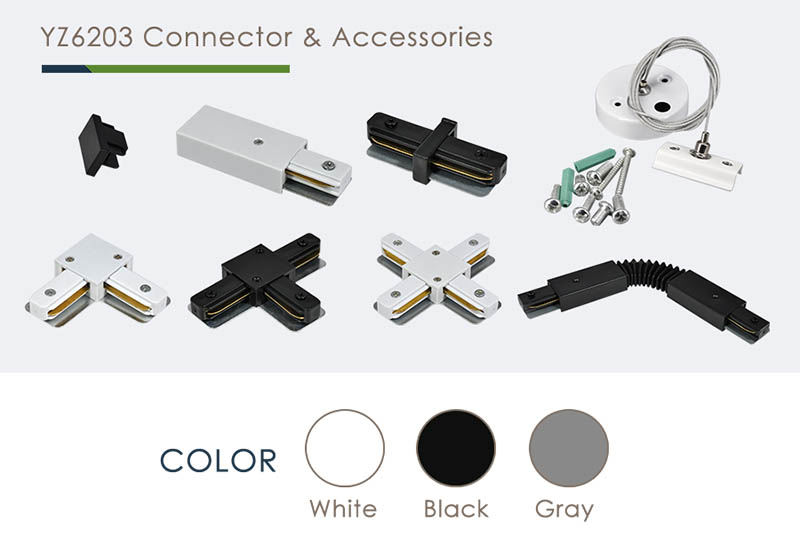

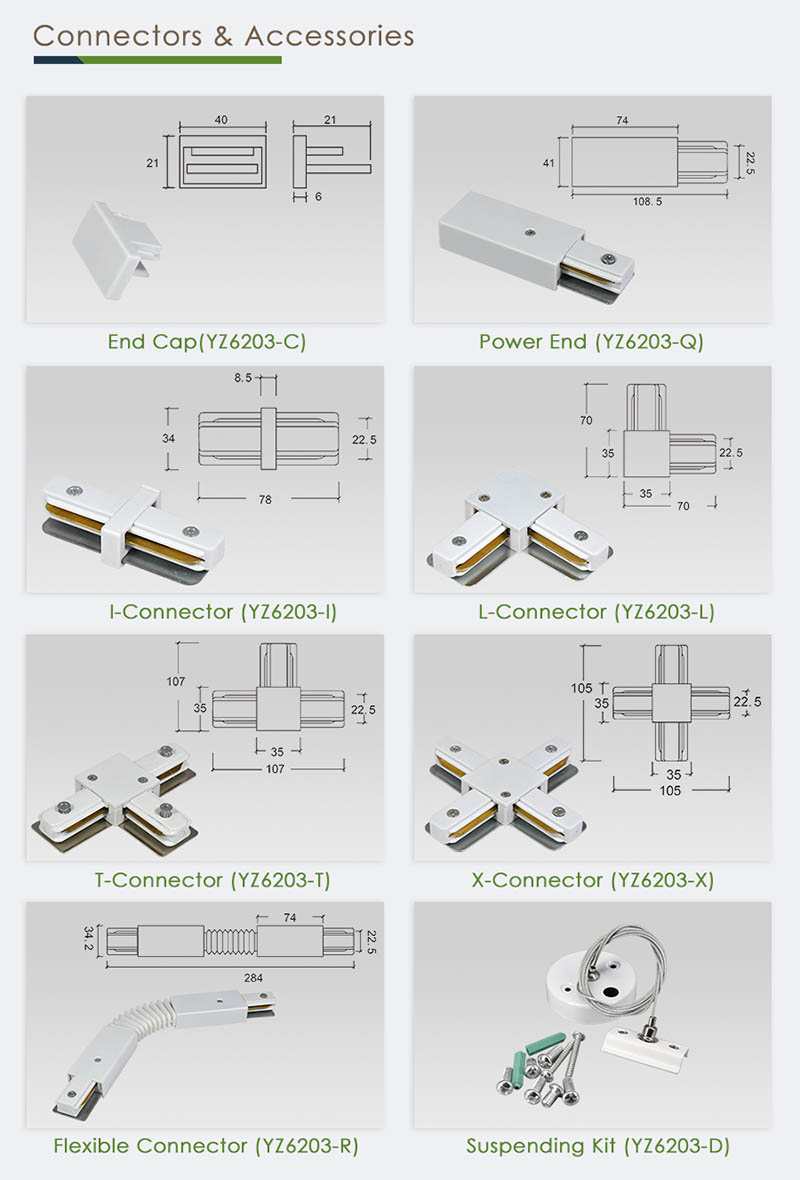

YZ6203 Track Connectors & Accessories

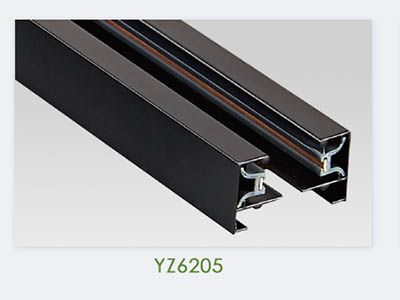

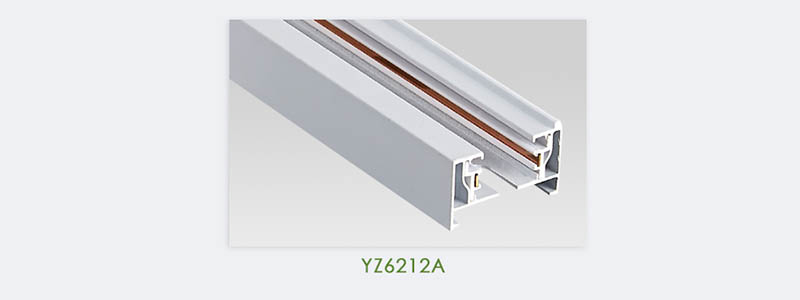

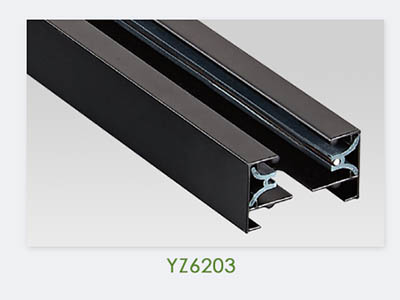

- Compatible with YZ6203 / YZ6205 / YZ6212A track rail.
- For 2 wire 1 circuit track lighting system.
- Flame retardancy PC plastic material shell.
- High performance at electric insulation.
- White, black, and other custom colors are available.
- Copper pieces have high performance at conductivity.
YZ6203 track lighting live end connector is for 2-wire and 1-circuit track lighting systems to construct the lighting track layout. The connector body was made of ABS material with features of flame retardancy & insulation to ensure electrical safety, it comes with brass contact pieces for power conducting between track rails.
 |
 |
Specifications
| Item No. | YZ6203 |
| Brand | Sampo |
| Wire type | Two-Wire |
| Circuit type | One-Circuit |
| Material | ABS Plastic |
| Colors | White, black, customized |
| Certificated | CE, RoHS |
| Application | Indoor commercial |
| Packing | Carton |

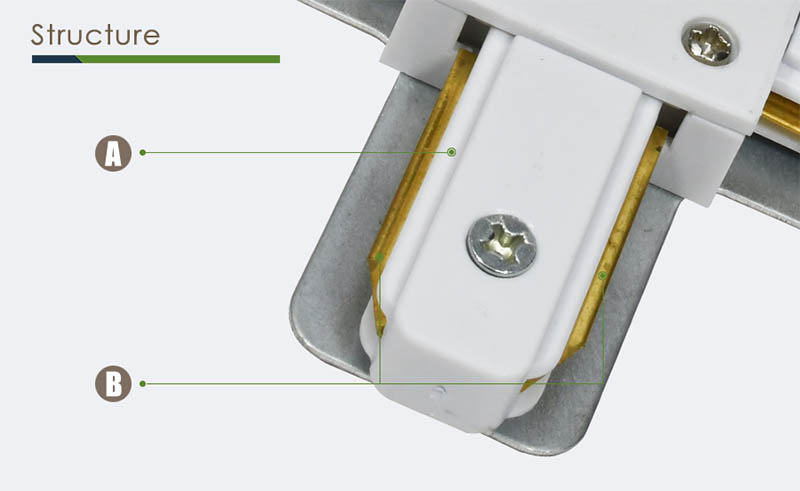

A. Body material is ABS has excellent features of flame retardancy & insulation to ensure electrical safety.
B. Brass contact pieces have high performance at conductivity.
