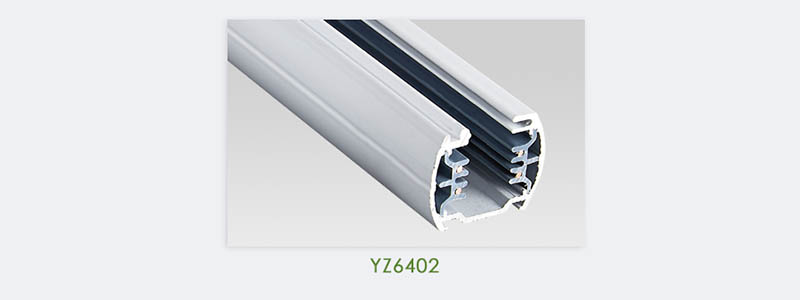

Four-Wire Track Rail

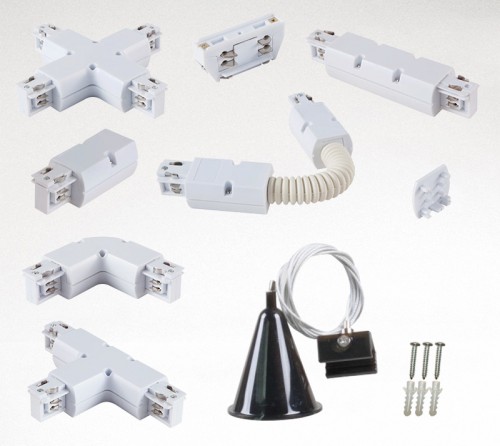

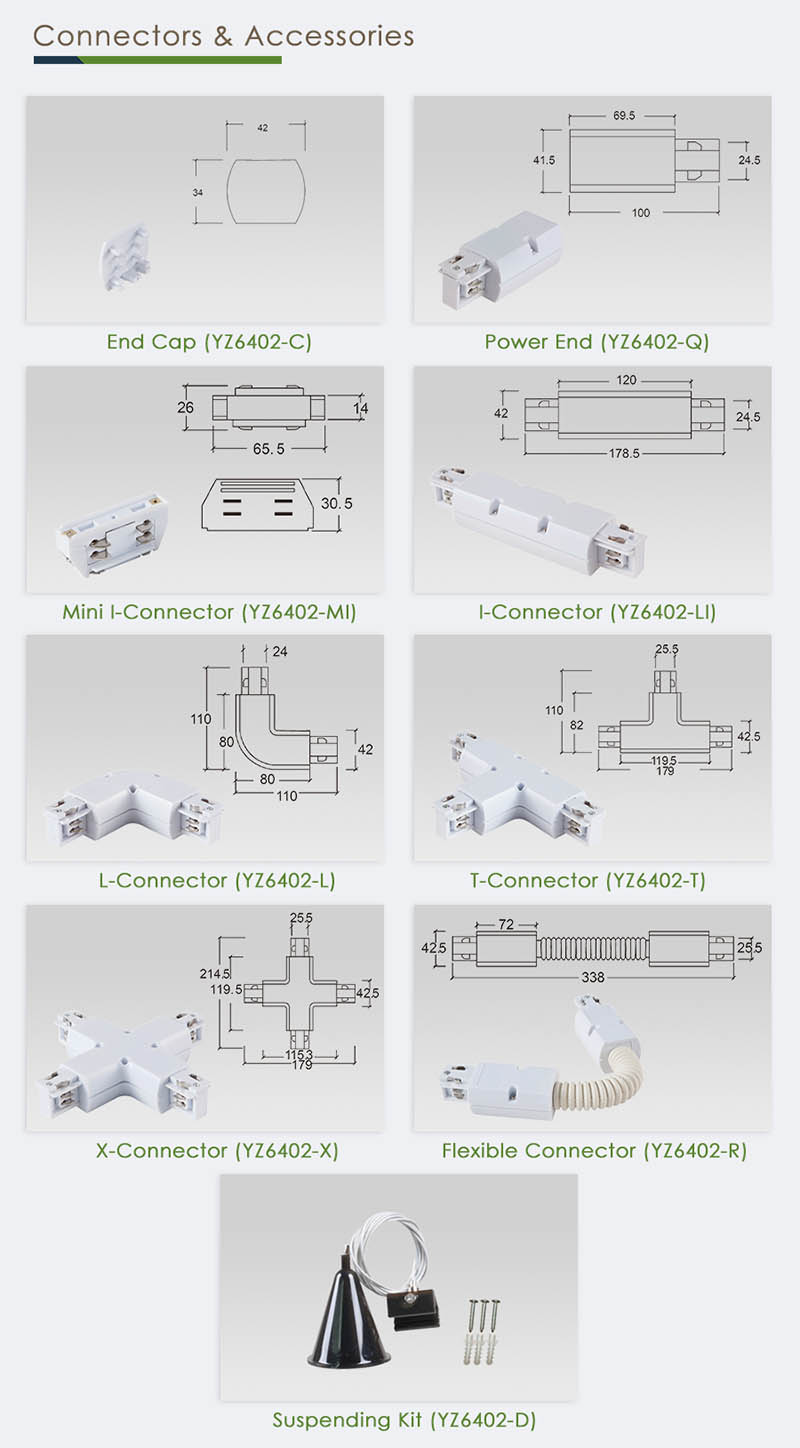

YZ6402 Track Connectors & Accessories
- Compatible with YZ6402 track rails.
- For 4-wire 3-circuit track lighting system.
- Flame retardancy PC plastic material shell.
- High performance at electric insulation.

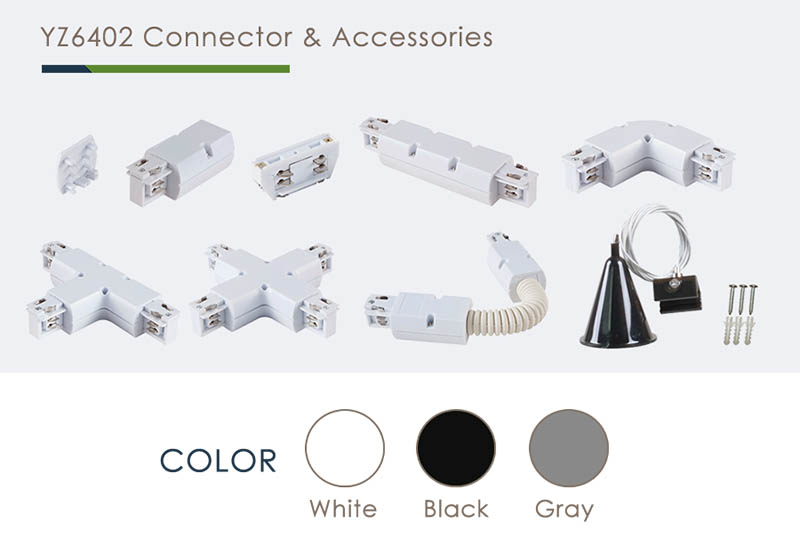

- White, black, and other custom colors are available.
- Copper pieces for high performance at conductivity.
YZ6402 track rail lighting kits are for 4-wire and 3-circuit track lighting systems to construct the lighting track layout. The connector body was made of PC material with features of flame retardancy & insulation to ensure electrical safety, it comes with brass contact pieces for power conducting between track rails.
Specifications
| Item No. | YZ6402 |
| Brand | Sampo |
| Wire type | Four-Wire |
| Circuit type | Three-Circuit |
| Material | PC Plastic |
| Colors | White, black, customized |
| Certificated | CE, RoHS |
| Application | Indoor commercial |
| Packing | Carton |

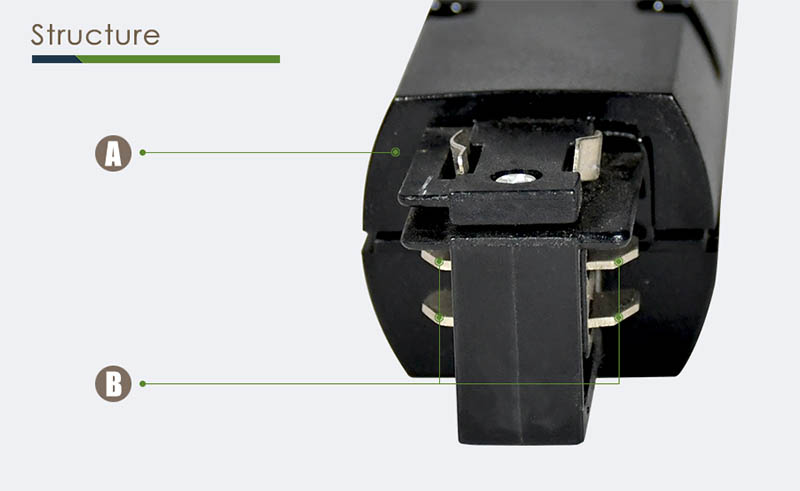

A. Body material is PC has excellent features of flame retardancy & insulation to ensure electrical safety.
B. Brass contact pieces have high performance at conductivity.
