Four-Wire Track Rail

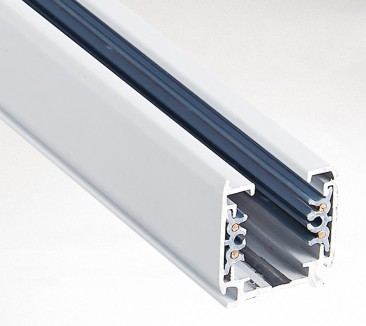

YZ6401 Track Rail

4-wire and 3-circuit LED light track system.
High performance at thermal conductivity.
Extruded alum-alloy profile.
4 pcs of copper strips for electrical conductivity.
The copper strips conduct well at power supply.
Flame-retarded PVC strips ensure electrical safety.
Surface finished with powder coating.
White & black color are available.
Varied types of connectors are available.

YZ6401 LED lighting track is for 4-wire and 3-circuit track light systems. The track rail body was made of premium extruded alum-alloy profile, comes with 4 pieces of brass conducting strips, which are insulated by flame-retarded PVC material. This track rail is compatible with several types of connectors and accessories for versatile lighting layouts and designs.

4 Wire 3 Circuit LED Lighting Track For Track Light Systems

Stunning designed and well surface finished with powder coating, regular colors are white and black, and other custom colors are available.

Specifications

Item No.	YZ6401
Brand	Sampo
Wire type	Four-Wire
Circuit type	Three-Circuit
Material	Extruded alum-ally profiles
Surface Finished	Powder coating
Colors	White, black, customized
Size	32mm x 36mm
Length	1.0 / 1.5 / 2.0 / 3.0M
Certificated	CE, RoHS
Application	Indoor commercial
Packing	Carton

Dimension | 4 Wire 3 Circuit Track Light Systems

Optional Length: 1.0 / 1.5 / 2.0 / 3.0 Meter

Structures | 4 Wire 3 Circuit LED Lighting Track

A. Housing was made of alum-alloy profile that is durable and good at thermoconductivity.
B. Flame-retarded PVC strips come with good insulation to ensure electrical safety.
C. Premium copper strips have high performance at electrical conductivity.
D. The surface of this LED lighting track was finished with powder coating, available with white, black, and other colors.
