Integrated LED Downlights

YZ8116 COB LED Downlight

Ceiling recessed COB LED downlights.
Regular powers: 7W/12W.
Brightness and CCT are adjustable.

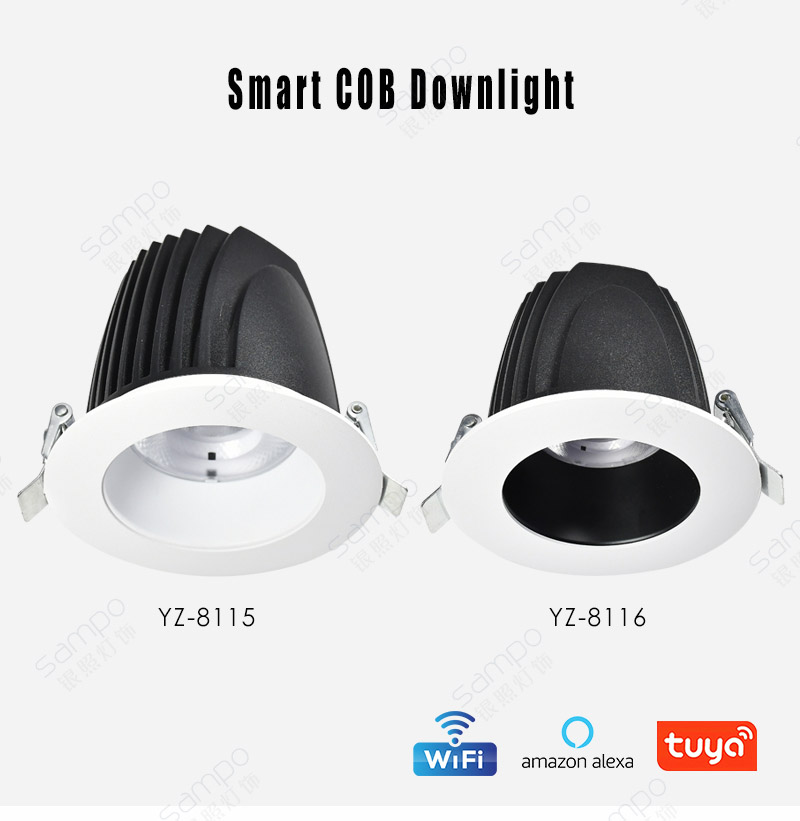

Compatible with wireless and wifi device for smart control.
Voltage AC85V~248V available on request.
Black, white and gray colors are available.
Color temperature 2700K~6000K available on request
The housing is made of premium die-cast aluminum.
Excellent thermal conductivity for long-lasting use.
Powder coating finish offers stunning appearance.
COB chips are optionsl from famous brands.

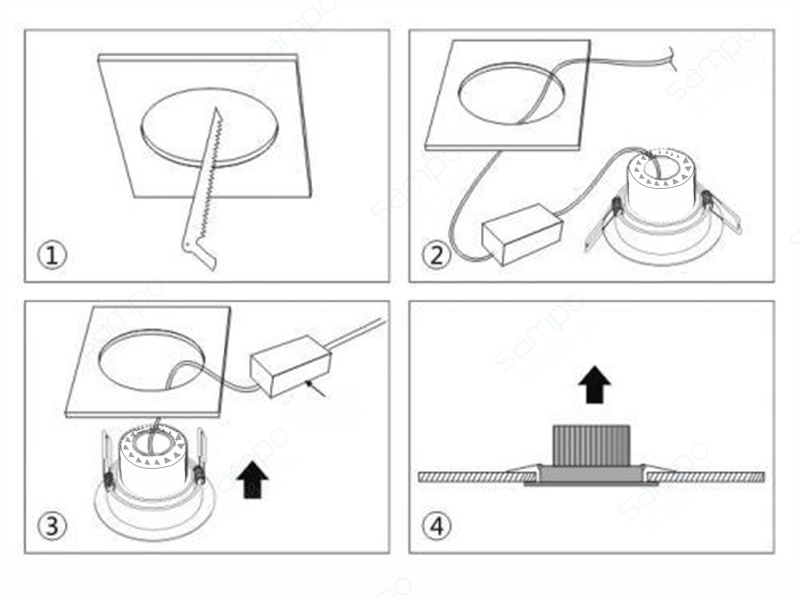

With spring clips to fix the fixture without tools.

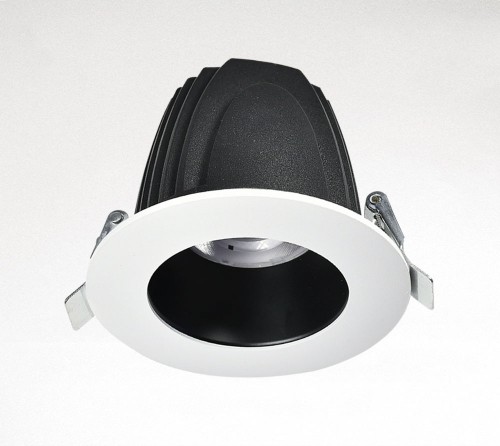

YZ8116 Ceiling Recessed 7W 12W COB LED Downlights

YZ8116 ceiling recessed COB LED downlights are an excellent solution for residential and commercial lighting. This fixture is compatible with some devices, which can be connected to the internet, and controlled on your smart phone from anywhere at any time. COB chips are optional from some famous brands. Durable die-casting aluminum alloy housing performs well at thermal conduction. The stoving varnish finish looks stunning and elegant. With a safe and reliable transformer to supply power, voltage AC85V~265V is available on requests.

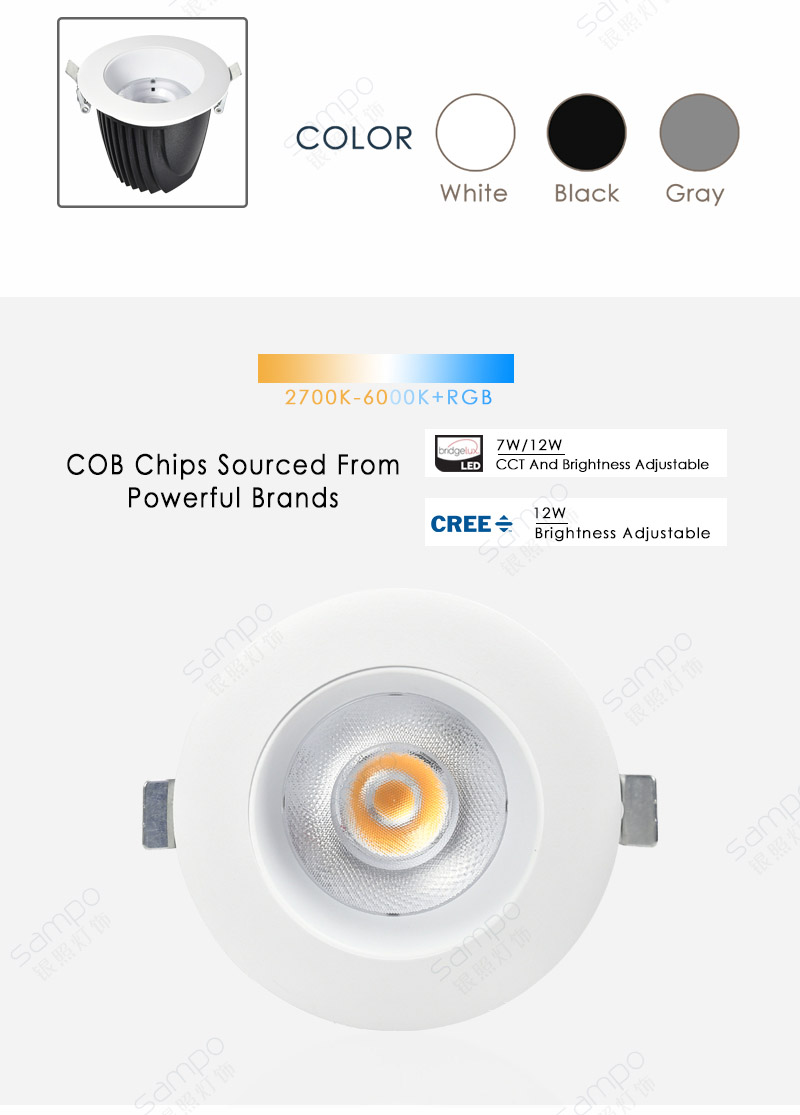

COB Chips | YZ8116 Ceiling Recessed 7W 12W COB LED Downlights

The COB chips of the COB LED downlight are optional to be sourced from CREE, Bridgelux and Epistar, Lens applied GR OPTICS technology.

Specifications

Motel No	YZ8116
Power	7W/12W
Voltage	85-265V
Lum. Efficiency	361/506 lm/w
Lum. Flux	100 lm
Working Temp.	-20~50°C
CCT.	2700-6000K
CRI	Ra>90
LED Source	COB
Housing Material	Aluminum
Finishing	Powder Coating
Color	White/Black/Gray
Lifespan	30000 hrs
Warranty	3 Years
Dimmable	Y
CCT Adjustable	Y
Size Of Cut-Off	Φ90mm
Size Of Surface	Φ110mm
Height	92mm

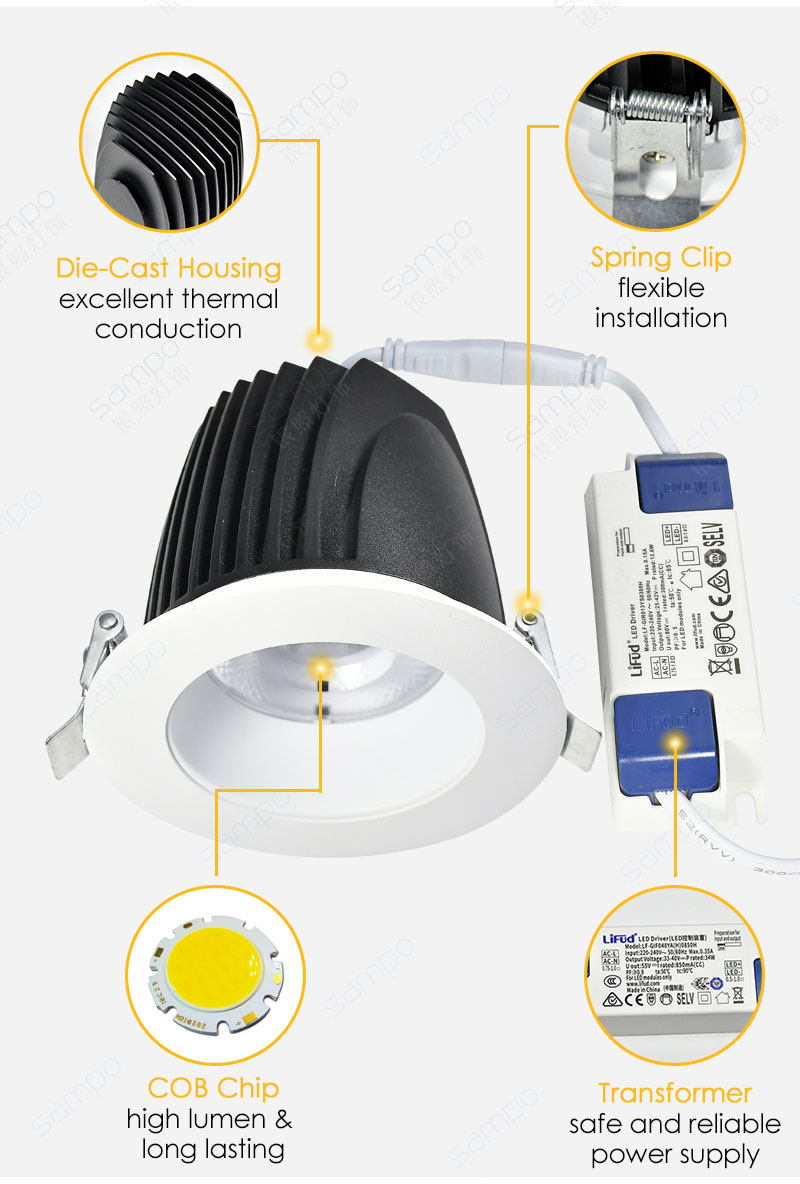

Features | YZ8116 Ceiling Recessed 7W 12W COB LED Downlights

The housing of the ceiling recessed downlight is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity. The surface of the housing was finished with stoving varnish and has white & black as standard colors, comes with stunning design.

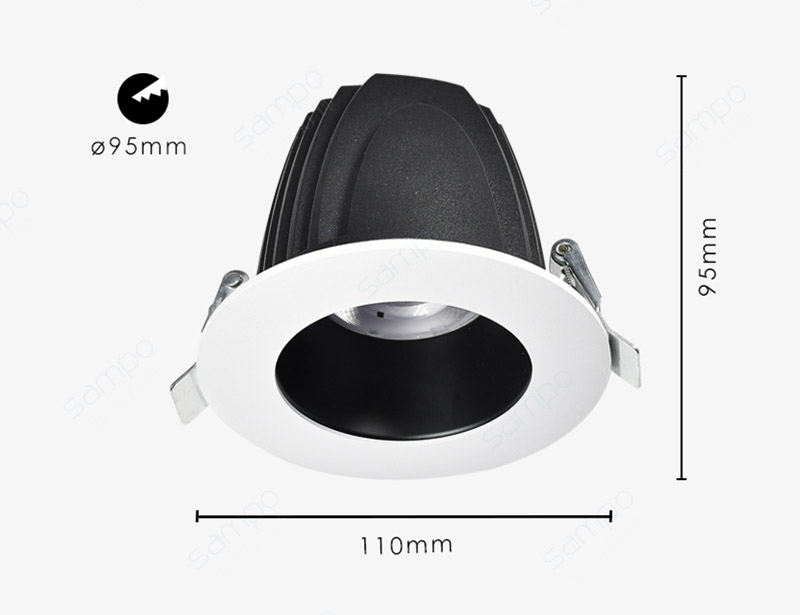

Dimension | YZ8116 Ceiling Recessed 7W 12W COB LED Downlights
