95-260V 35mm Smart Track Lighting System

95-260V 35mm Smart Track Lighting System

95-260V 35mm Smart Track Lighting System

35mm Magnetic Track



35mm Magnetic Track

  • 1.0/1.5/2.0/3.0M are optional for length.
  • 4-wire smart track lighting system.
  • Extruded alum-alloy profile track.
  • Excellent performance at thermal conductivity.
  • Stoving varnish finished surface.
  • Black & white color are optional.
  • Compatible accessories & parts are available.
  • Brass strips have well electrical conductivity.
  • Flame-retarded PVC strips ensure electrical safety.

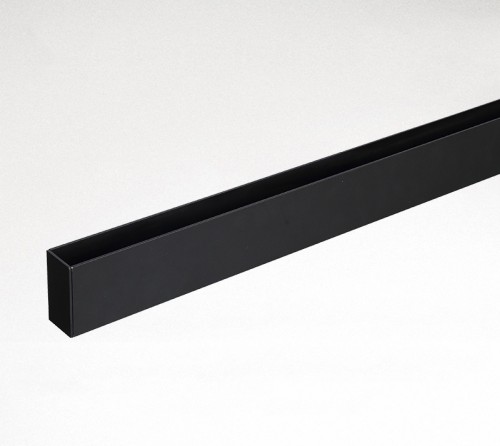

XYZ35 Magnetic Lighting Track System

This magnetic lighting track is for 35mm 4-wire magnetic LED track light system. The track rail is made of premium extruded alum-alloy profile, comes with 4 pieces of brass strips that have good performance at electrical conductivity, and is insulated by flame-retarded PVC profiles to ensure electrical safety. This track rail is compatible with some connectors and accessories for versatile lighting applications and solutions.

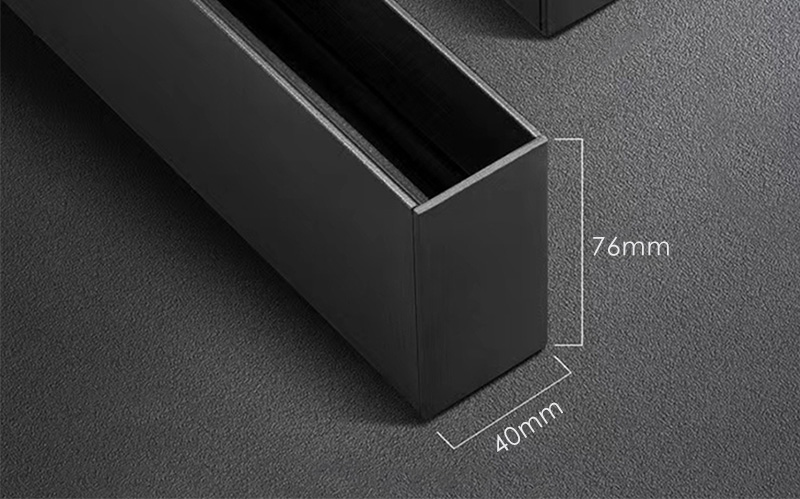

Dimension | XYZ35 Magnetic Lighting Track System



Specifications

Model No. Length Weight Material Finish Size
XYZ35GD10 1.0 Meter 2.0kg 2.5mm Extruded Aluminum Profile Stoving Varnish W40 * H76
XYZ35GD15 1.5 Meter 3.0kg
XYZ25GD20 2.0 Meter 4.0kg
XYZ25GD30 3.0 Meter 6.0kg



XYZ35 Magnetic Lighting Track System

I Connector | XYZ35 Magnetic Lighting Track System L Connector | XYZ35 Magnetic Lighting Track System

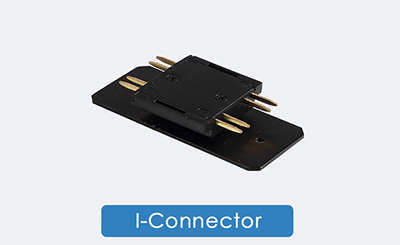

Model No.: XYZ35-I

Size: W30 * L57 * H35mm

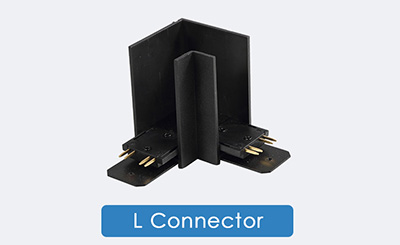

Model No.: XYZ35-L

Size: W55 * L55 * H57mm



Wall Connector | XYZ35 Magnetic Lighting Track System Power Feed | XYZ35 Magnetic Lighting Track System

Model No.: XYZ35-7

Size: W55 * L55 * H57mm

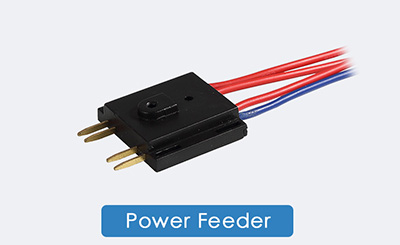

Model No.: XYZ35-D

Size: W36 * L45 * H57mm



Recessed Part | XYZ35 Magnetic Lighting Track System Suspending Kit | XYZ35 Magnetic Lighting Track System

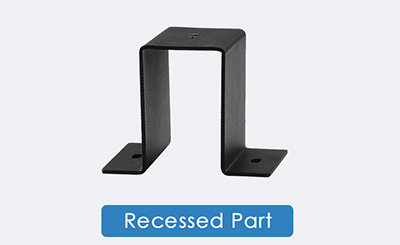

Model No.: XYZ35-M

Size: L47.5 * W36.5 * H69mm

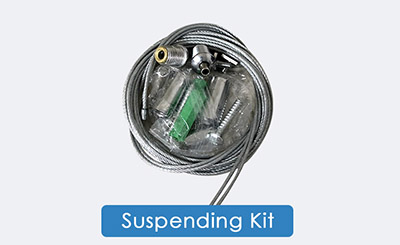

Model No.: XYZ35-D

Size: /
