COB LED Track Lights

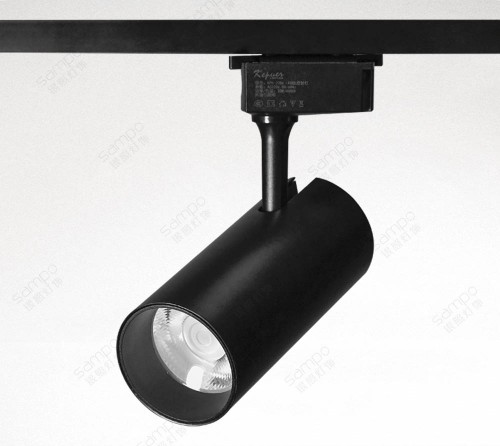

YZ7108 COB Track Light
- Power available at 12/20/30W.
- The beam angle is at 24°/36°.
- For commercial & residential track lighting.
- Voltage 220-240V available on request.

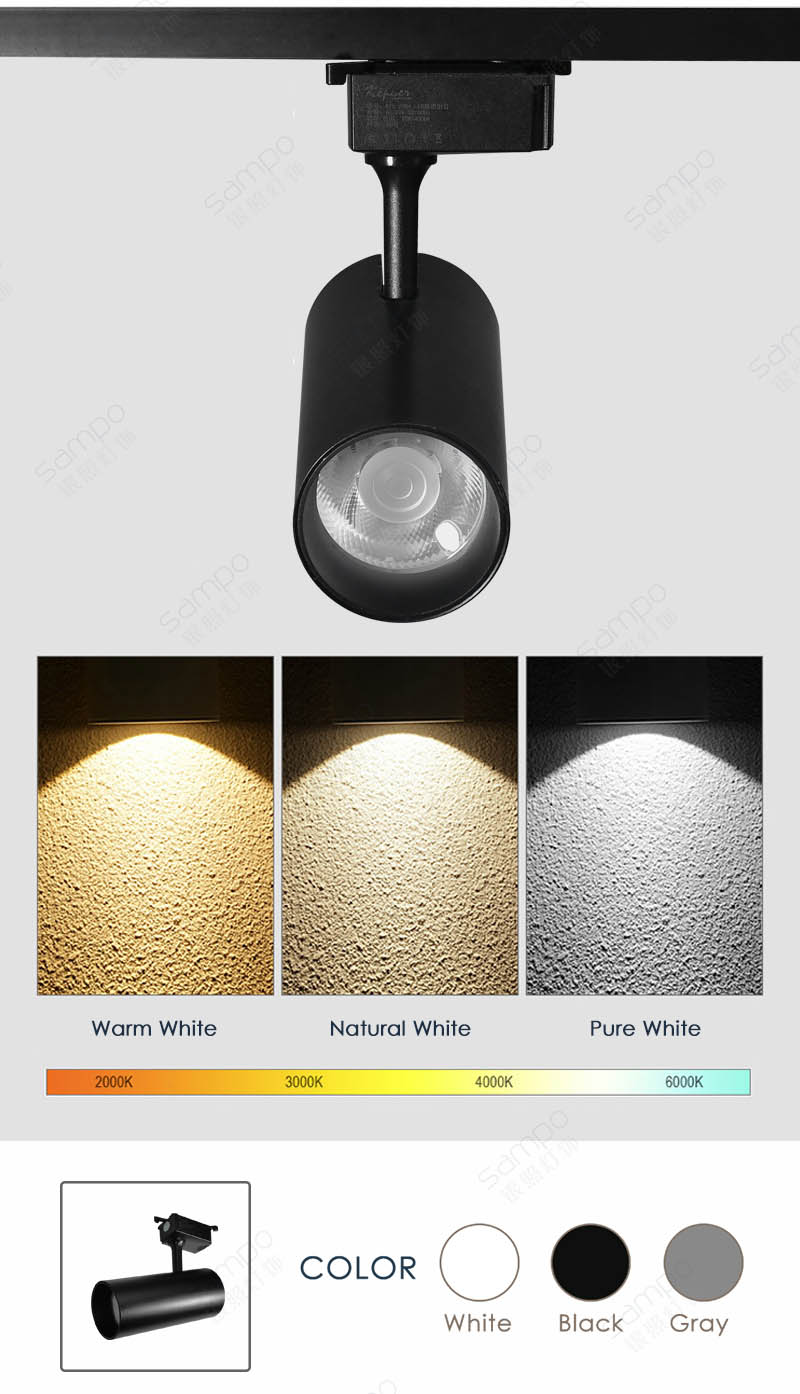

- Color temperature 3000K~6000K.
- Stunning design finished with stoving varnish.
- Black, white, gray, and other colors are optional.
- Die-casting aluminum housing.
- Integrated with a reliable non-isolated driver.
- COB chips are optional from famous brands.

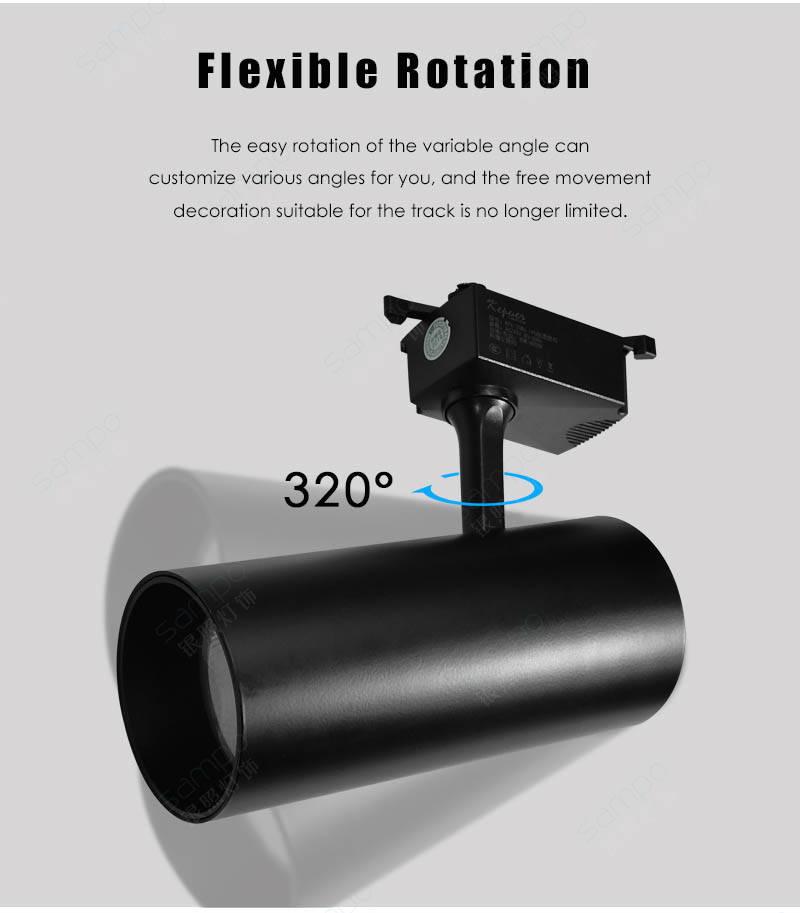

- 320° horizontally & 90° vertically adjustable head.
- Fix on track rail without tool.

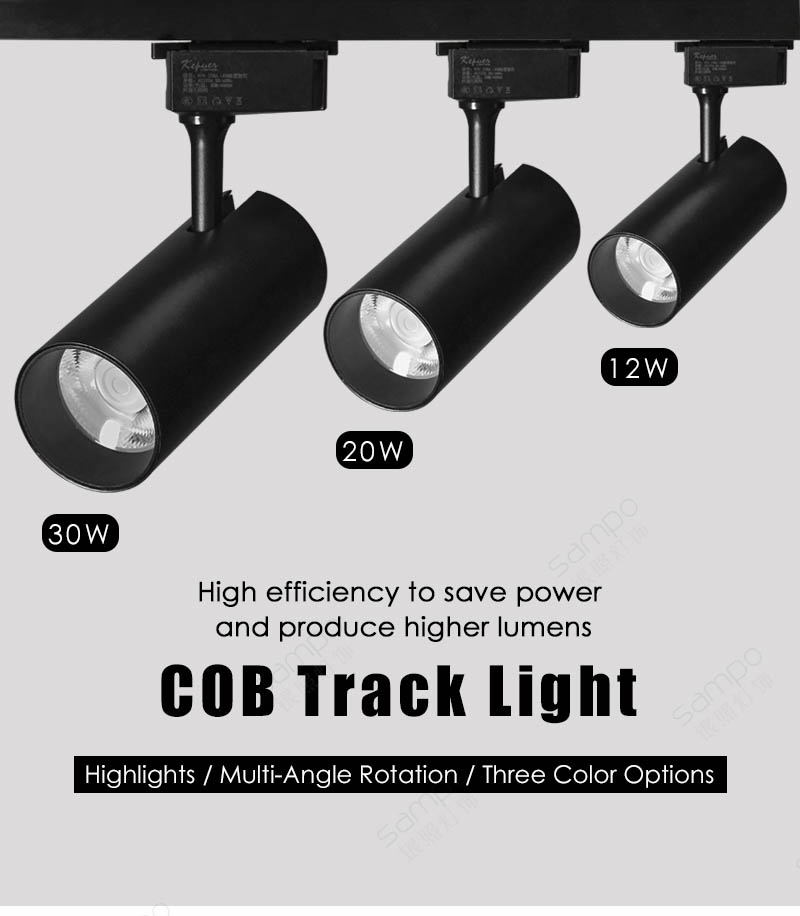

YZ7108 LED track light fixtures have optional powers at 12/20/30W for commercial & residential lighting solutions, comes with durable die-cast aluminum enclosure finished with stoving varnish, black, white, and gray are optional. It produces a soft spotlight to highlight the objects with a mild feeling. The LED chip is COB type and optional from famous brands. Premium driver comes with clips for fixing on the track rail without any tool. The light head is vertically adjustable at 90° and horizontally rotatable at 320°. The voltage range is between 220-240V or on the customer's request to comply with different standards in many countries.

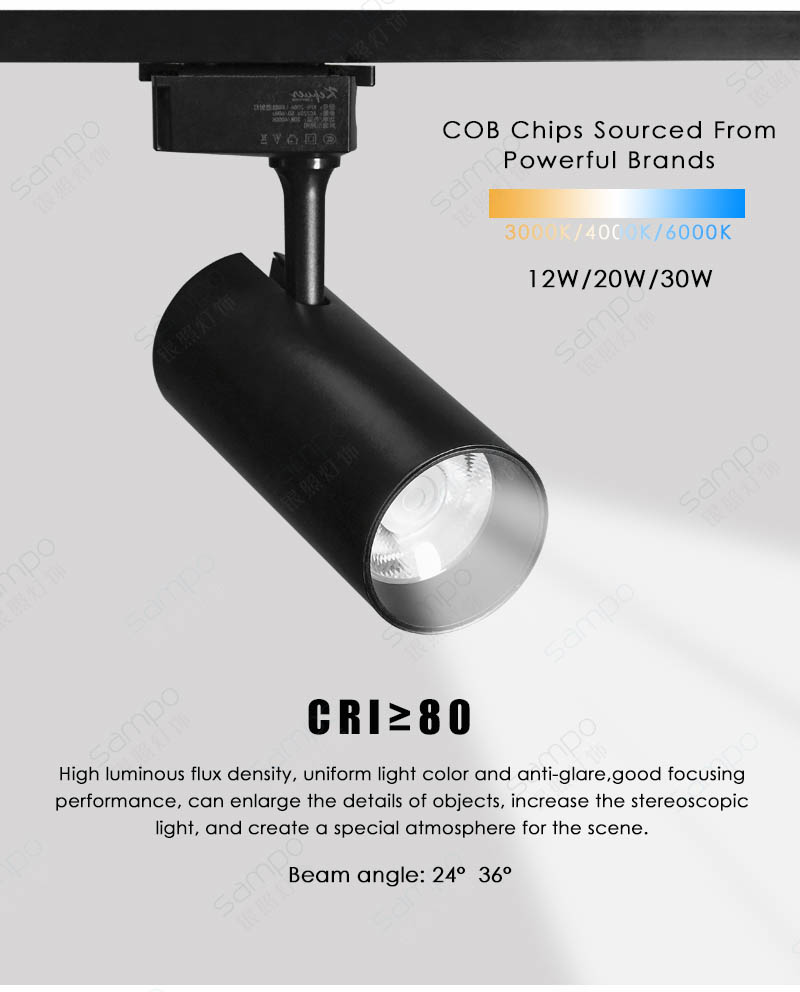

COB chips of the LED track light are optional to be sourced from famous brands, CREE, Epistar, Bridgelux, and so on. And the lens applied GR OPTICS technology.
The surface of the housing was finished with Stoving varnish and has white & black as standard colors, comes with a stunning design.
Specifications
| Item No. | YZ7108 |
| Power | 12/20/30W |
| Input Voltage | 220-240V |
| Luminous Efficiency | 80 or 90lm/W |
| Working Temp. | -20~50°C |
| Color Temp. | 3000-6000K |
| CRI | Ra>80/90 |
| Beam Angle | 24° / 36° |
| LED Source | COB |
| Housing Material | Aluminum |
| Finishing | Stoving Varnish |
| Color | White/Black/Gray |
| Lifespan (hrs) | 30000 |
| Warranty (Years) | 2 |
| Dimmable (Y/N) | N |
| CCT Adjustable (Y/N) | N |

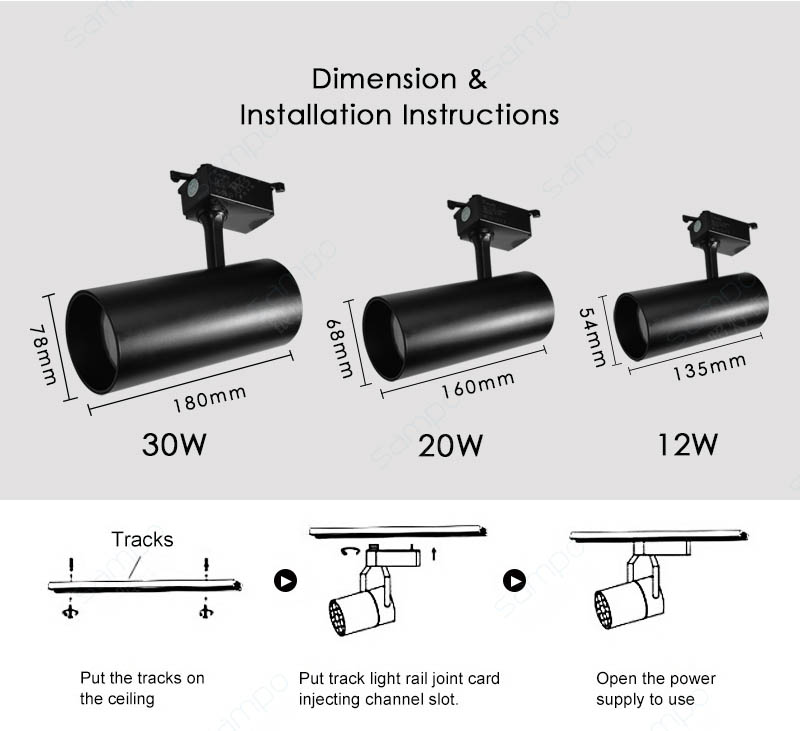

| Dimension (mm) | 12W: Φ54*135mm 20W: Φ68*160mm 30W: Φ78*180mm |

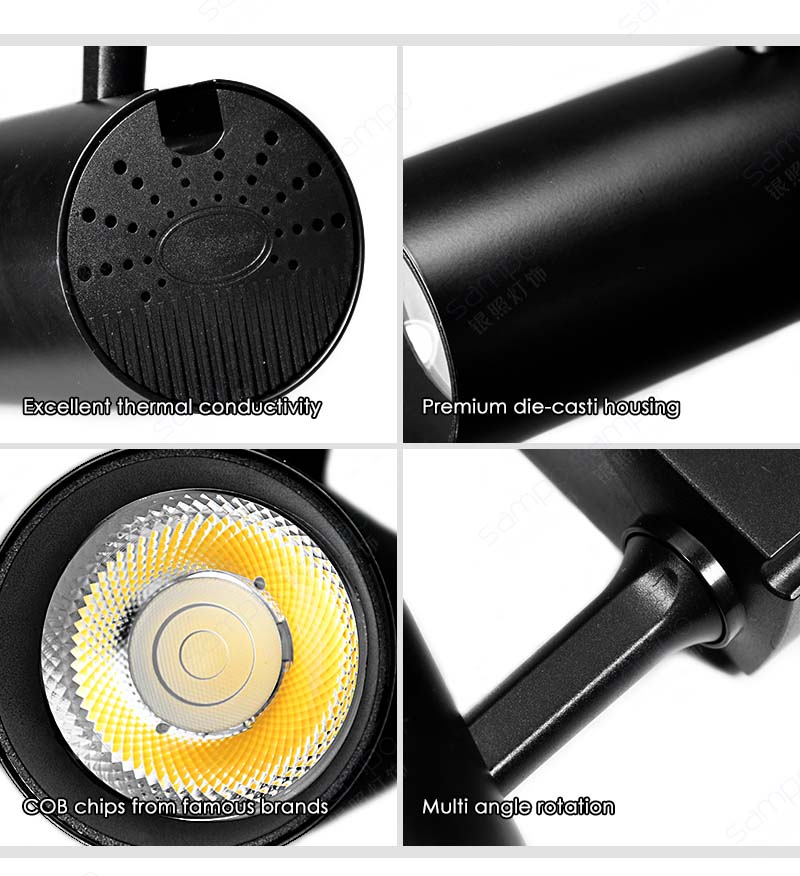

The housing of the LED track light fixtures is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.
