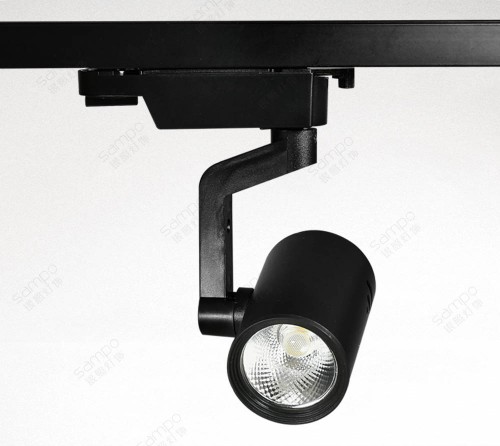

YZ7101 COB Track Light

Power available at 10/20/30W.
Color temperature 3000K~6000K.
For commercial & residential track lighting.
The beam angle is at 24°/36°.
Voltage 165-265V available on request.
Stunning design finished with stoving varnish.
Black, white, gray, and other colors are optional.
Die-casting aluminum housing.
Integrated with a reliable non-isolated driver.
COB chips are optional from famous brands.
360° horizontally & 90° vertically adjustable head.
Fix on track rail without tool.

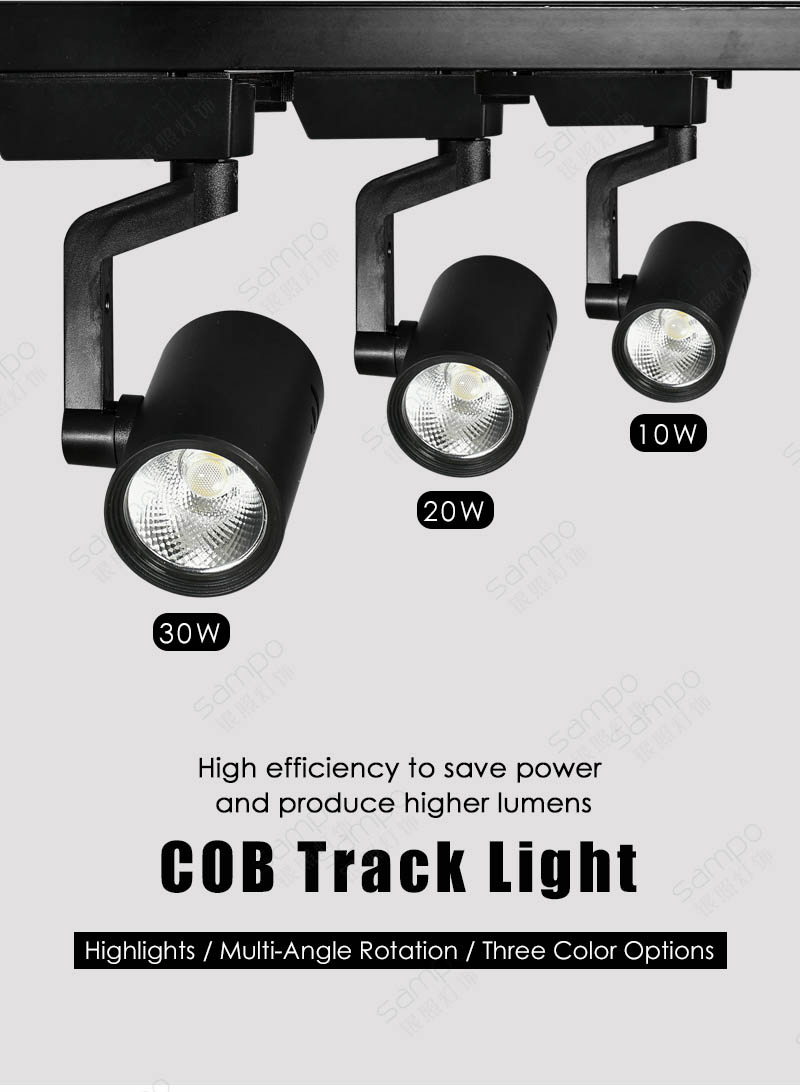

YZ7101 10W 20W 30W LED Track Light Heads And Fittings

YZ7101 LED track light heads And fittings have optional powers at 10/20/30W for commercial & residential lighting solutions, comes with durable die-cast aluminum enclosure finished with stoving varnish, black, white, and gray are optional. It produces a soft spotlight to highlight the objects with a mild feeling. The LED chip is COB type and optional from famous brands. Premium driver comes with clips for fixing on the track rail without any tool. The light head is vertically adjustable at 270° and horizontally rotatable at 360°. The voltage range is between 165-265V to comply with different standards in many countries.

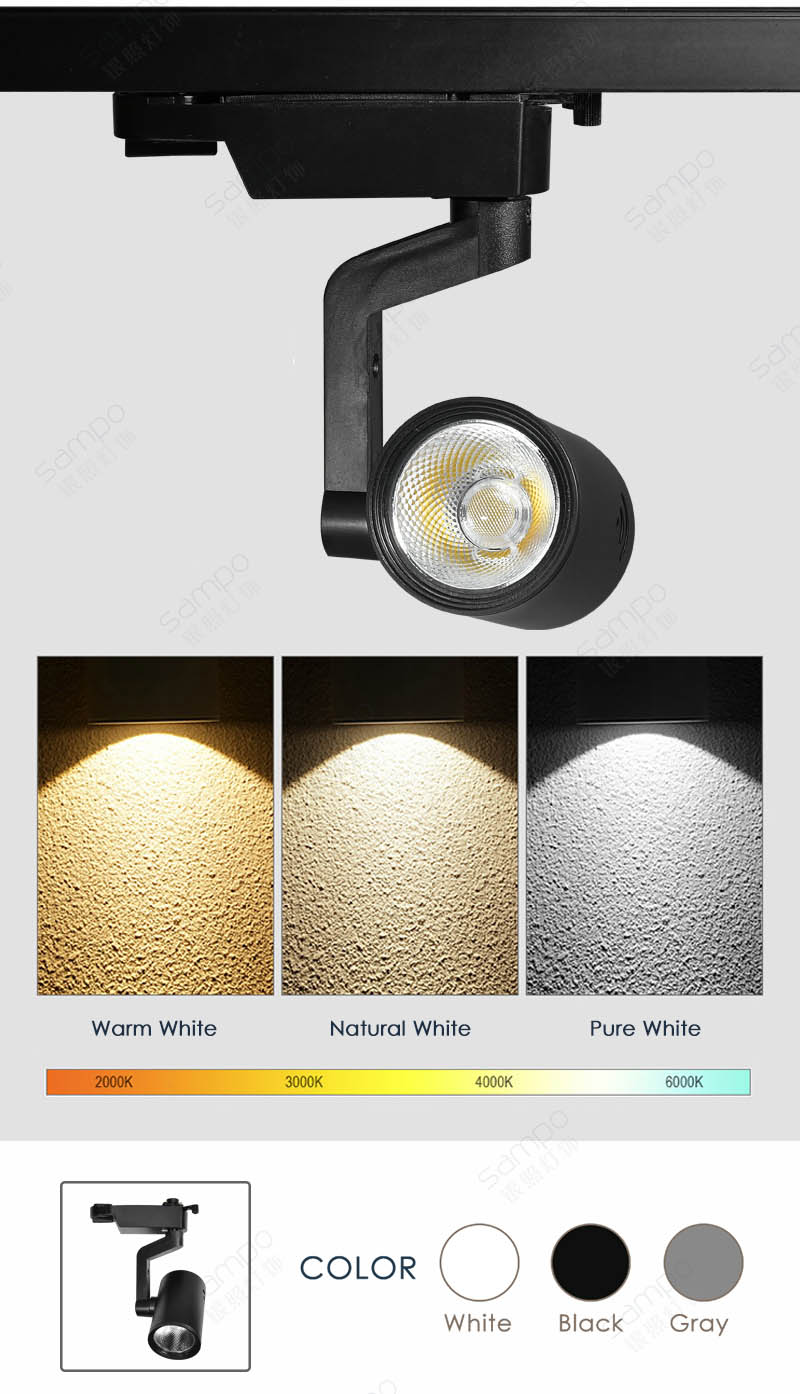

Surface Finishing | YZ7101 10W 20W 30W LED Track Light Heads And Fittings

COB chips of the track light heads are optional to be sourced from famous brands, CREE, Epistar, Bridgelux, and so on. And the lens applied GR OPTICS technology.

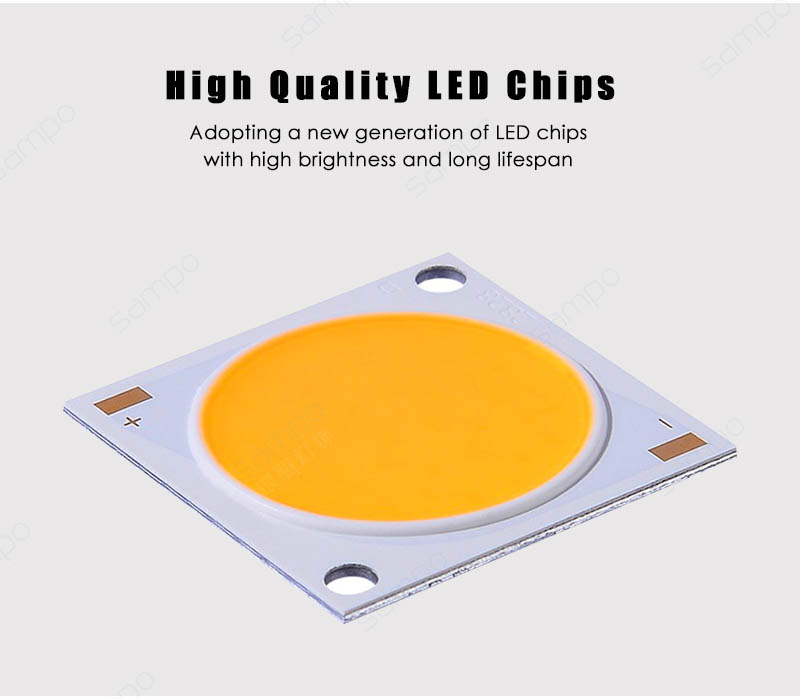

COB Chips | YZ7101 10W 20W 30W LED Track Light Heads And Fittings

The surface of the housing was finished with stoving varnish and has white & black as standard colors, comes with stunning design.

Specifications

Item No.	YZ7101
Power	10/20/30W
Input Voltage	165-265V
Luminous Efficiency	80 or 90 lm/W
Working Temp.	-20~50°C
Color Temp.	3000-6000K
CRI	Ra>80/90
Beam Angle	24°
LED Source	COB
Housing Material	Aluminum
Finishing	Stoving Varnish
Color	White/Black/Gray
Lifespan (hrs)	30000
Warranty (Years)	2
Dimmable (Y/N)	N
CCT Adjustable (Y/N)	N
Dimension (mm)	10W: Φ54mm 20W: Φ70mm 30W: Φ100mm

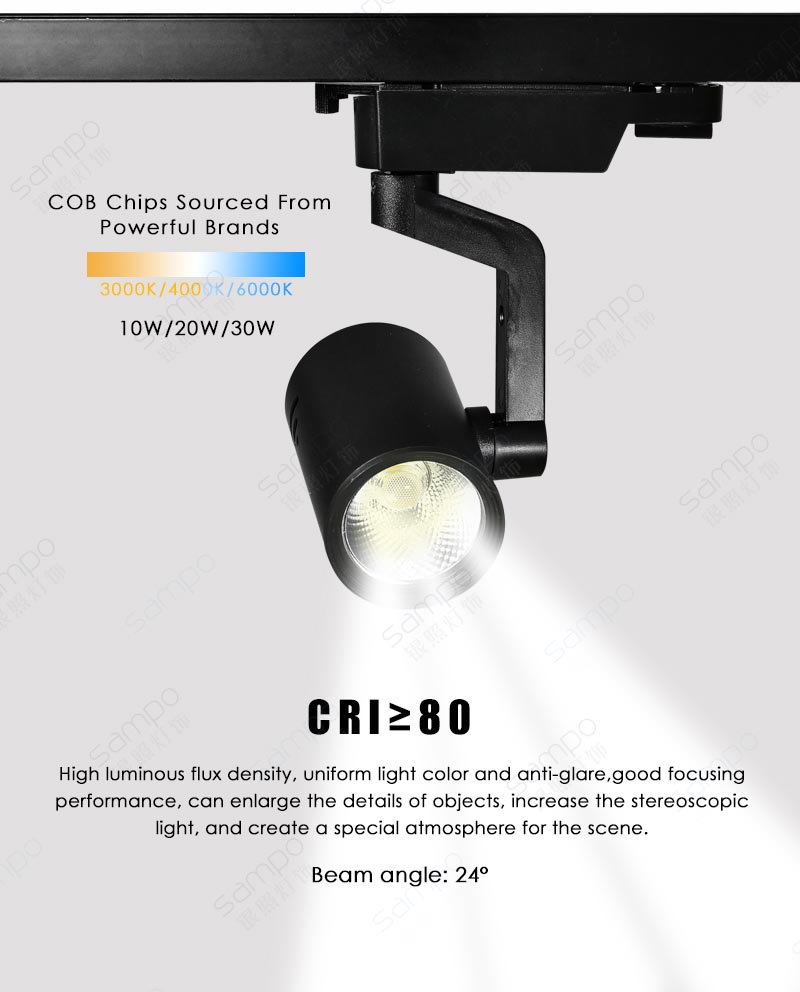

CRI Performance | YZ7101 10W 20W 30W LED Track Light Heads And Fittings

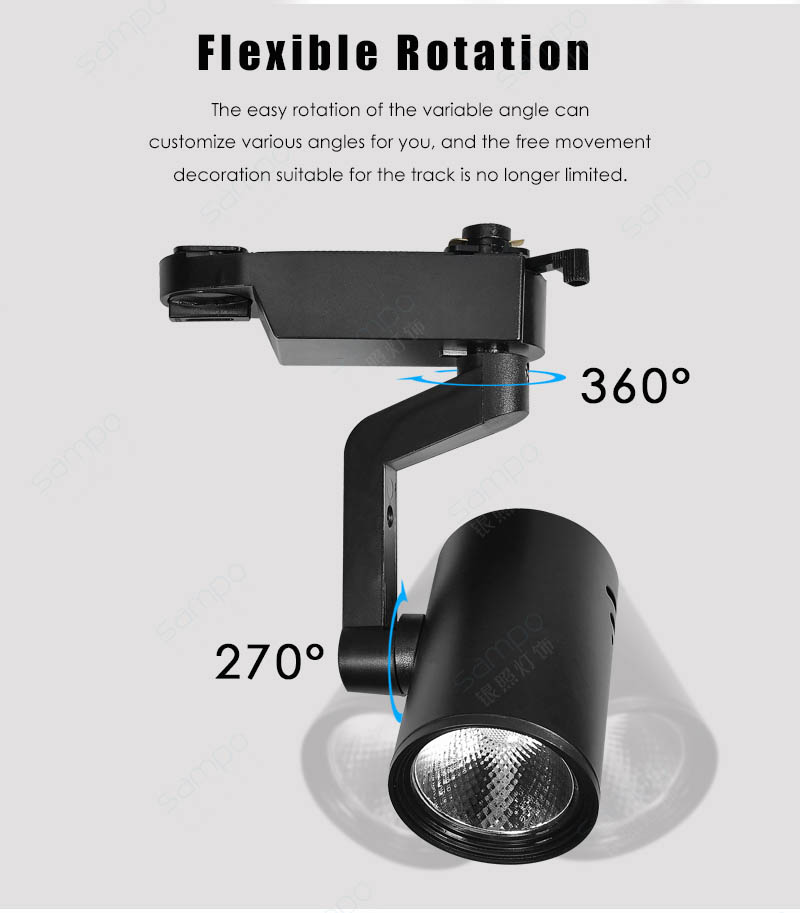

Rotatable | YZ7101 10W 20W 30W LED Track Light Heads And Fittings

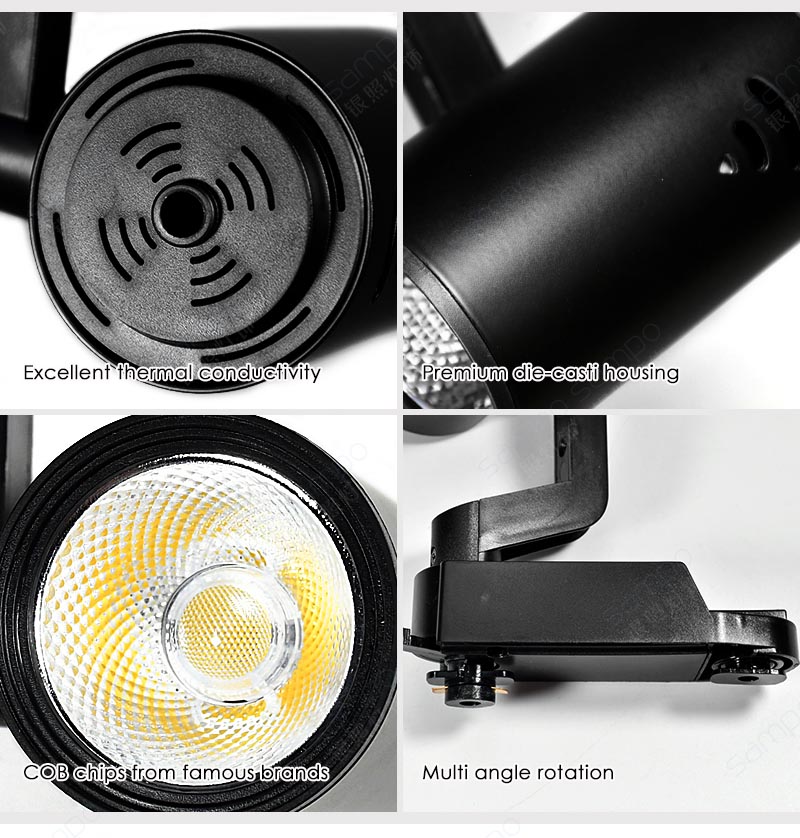

The housing of the LED track light heads is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

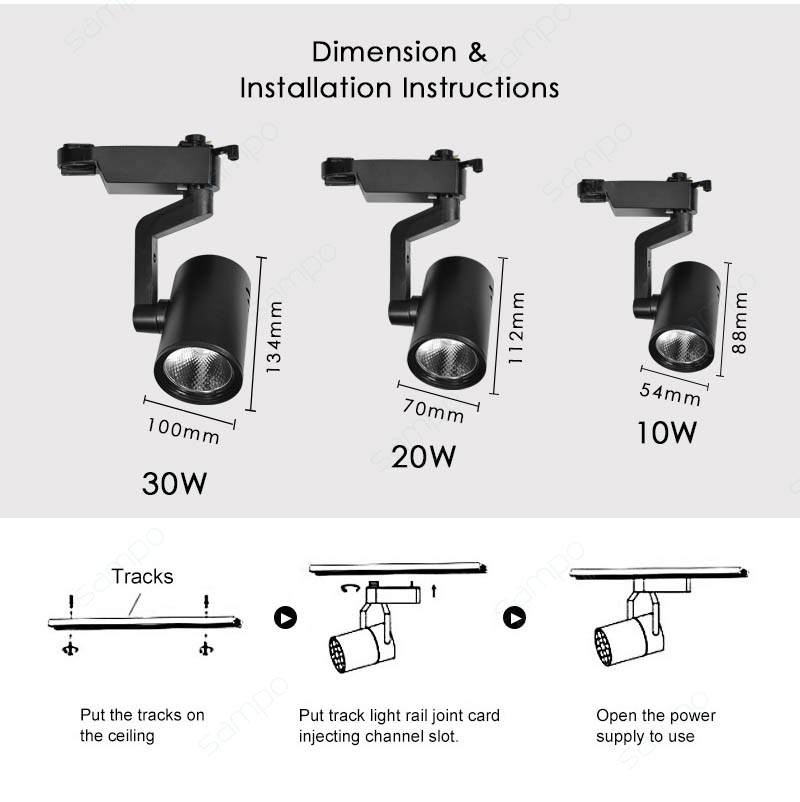

Dimension | YZ7101 10W 20W 30W LED Track Light Heads And Fittings
