COB LED Track Lights

YZ7217 Track Flood Light

Power available at 10/15/20W.
LED track flood lights.
For commercial & residential track lighting.
The beam angle is at 20°.
Voltage 165-265V available on request.
Color temperature 3000K~6000K.
Stunning design finished with stoving varnish.
Black, white, gray, and other colors are optional.
Die-casting aluminum housing.
Integrated with a reliable non-isolated driver.
COB chips are optional from famous brands.
360° horizontally & 360° vertically adjustable head.
Fix on track rail without tool.

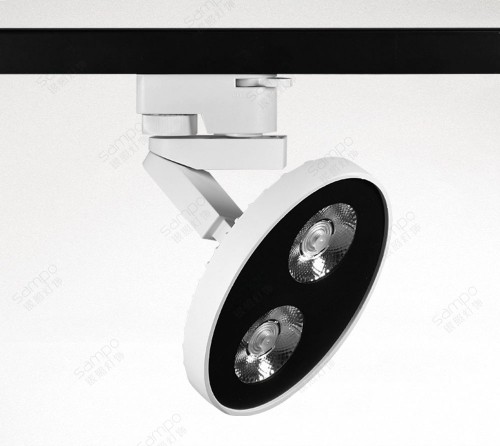

YZ7217 10W 15W 20W LED Track Flood Lights

YZ7217 LED track flood lights have optional powers at 10W/15W/20W for commercial & residential lighting solutions, comes with durable die-cast aluminum enclosure finished with stoving varnish, black, white, and gray are optional. It produces a soft spotlight to highlight the objects with a mild feeling. The LED chip is COB type and optional from famous brands. Premium driver comes with clips for fixing on the track rail without any tool. The light head is vertically adjustable at 360° and horizontally rotatable at 360°. The voltage range is between 165-265V to comply with different standards in many countries.

COB Chips | YZ7217 10W 15W 20W LED Track Flood Lights

The surface of the housing was finished with stoving varnish and has white & black as standard colors, comes with stunning design.

Specifications

Item No.	YZ7217
Power	10/15/20W
Input Voltage	165-265V
Luminous Efficiency	80 or 90 lm/W
Working Temp.	-20~50°C
Color Temp.	3000-6000K
CRI	Ra>80/90
Beam Angle	20°
LED Source	COB
Housing Material	Aluminum
Finishing	Stoving Varnish
Color	White/Black/Gray
Lifespan (hrs)	30000
Warranty (Years)	2
Dimmable (Y/N)	N
CCT Adjustable (Y/N)	N
Dimension (mm)	10W: Φ100mm 15W: Φ128mm 20W: 128*128mm

CRI Performance | YZ7217 10W 15W 20W LED Track Flood Lights

COB chips of the track flood lights are optional to be sourced from famous brands, CREE, Epistar, Bridgelux, and so on. And the lens applied GR OPTICS technology.

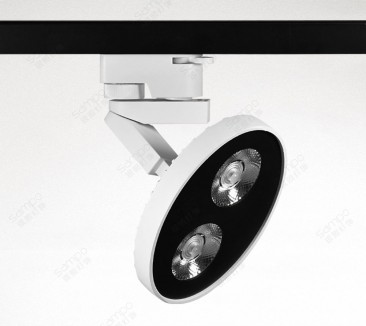

Rotatable | YZ7217 10W 15W 20W LED Track Flood Lights

The housing of the LED track flood lights is made of premium die-casting aluminum-alloy, which is durable and has good performance at thermal conductivity.

Dimension | YZ7217 10W 15W 20W LED Track Flood Lights
